| Product Model | GN_PL_80 | GN_PL_110 | GN_PL_130 | GN_PL_160 |
|---|---|---|---|---|
| Product Weight | 1.4kg | 1.5kg | 1.55kg | 1.65kg |
| Product dimensions | 546mm×158mm×100mm | 546mm×184mm×100mm | 546mm×204mm×100mm | 546mm×234mm×100mm |
| Applicable angle steel | 60-80mm | 80-110mm | 110-130mm | 130-160mm |
| Tower height | ≤100 | ≤100 | ≤100 | ≤100 |
| Static Properties | 22kN/3min | 22kN/3min | 22kN/3min | 22kN/3min |

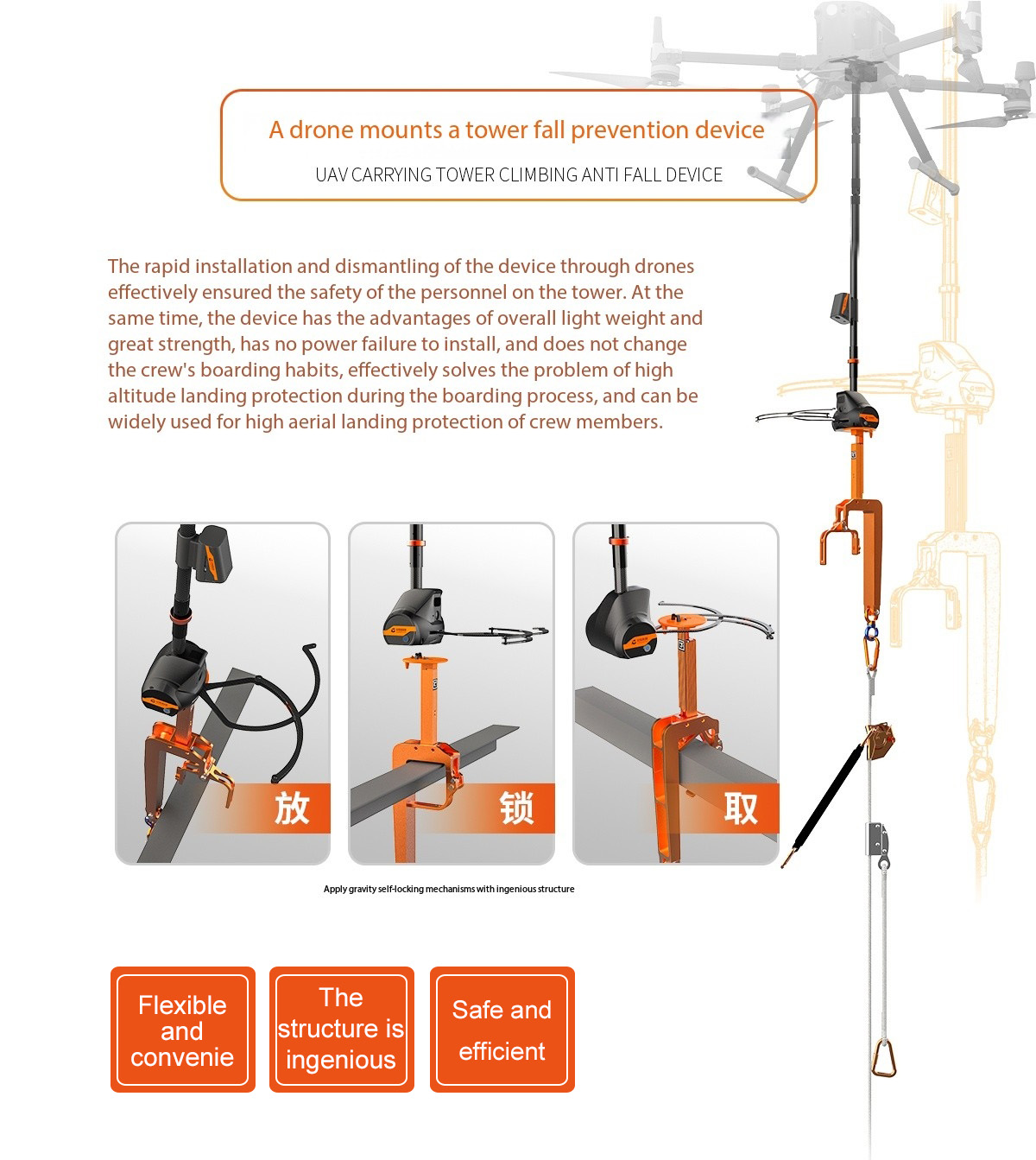

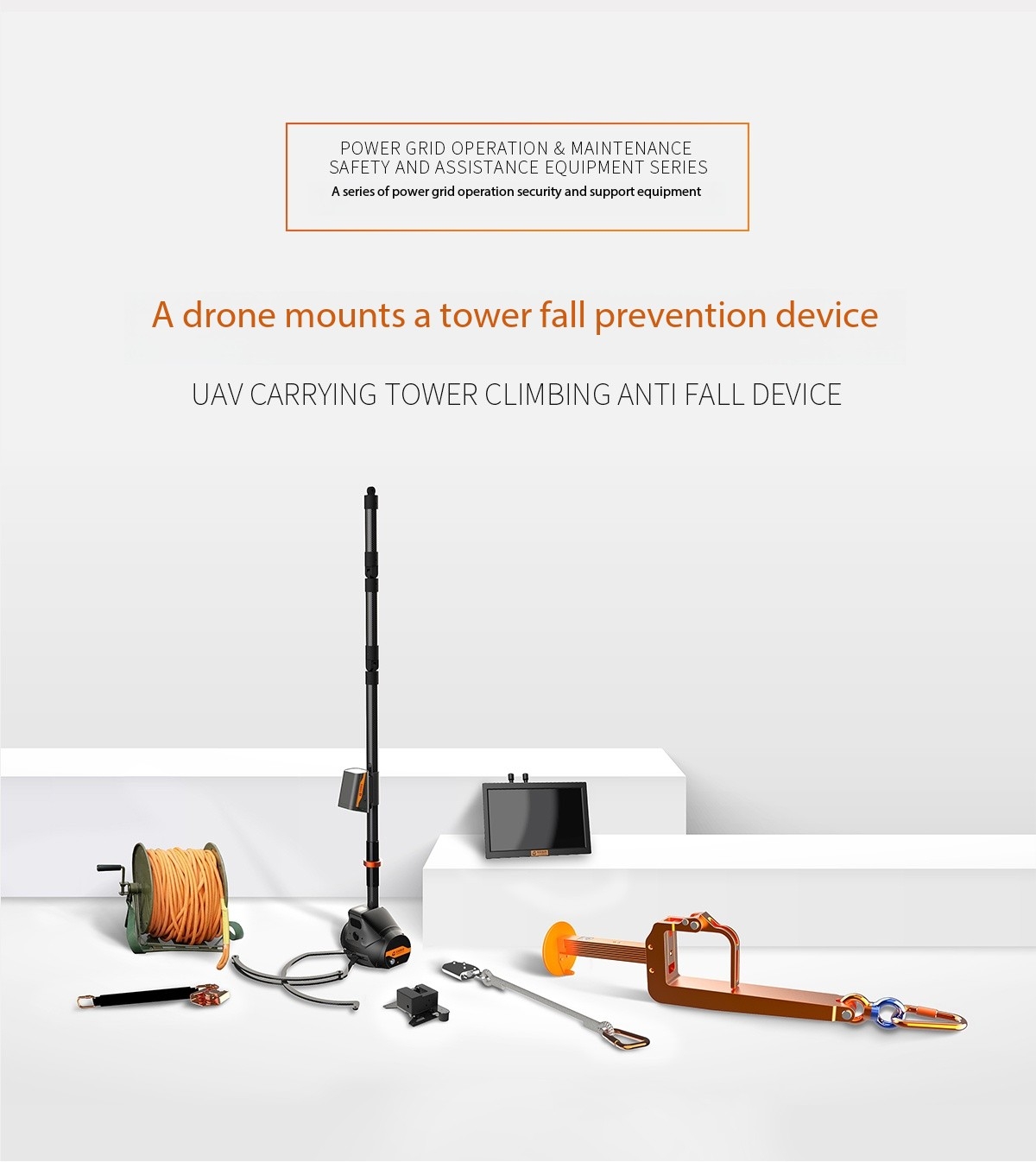

UAV Carrying
Tower Climbing Anti-Fall Device
- Drone Collaboration
- Drone Collaboration
- Drone Collaboration
- Real-time Video Transmission

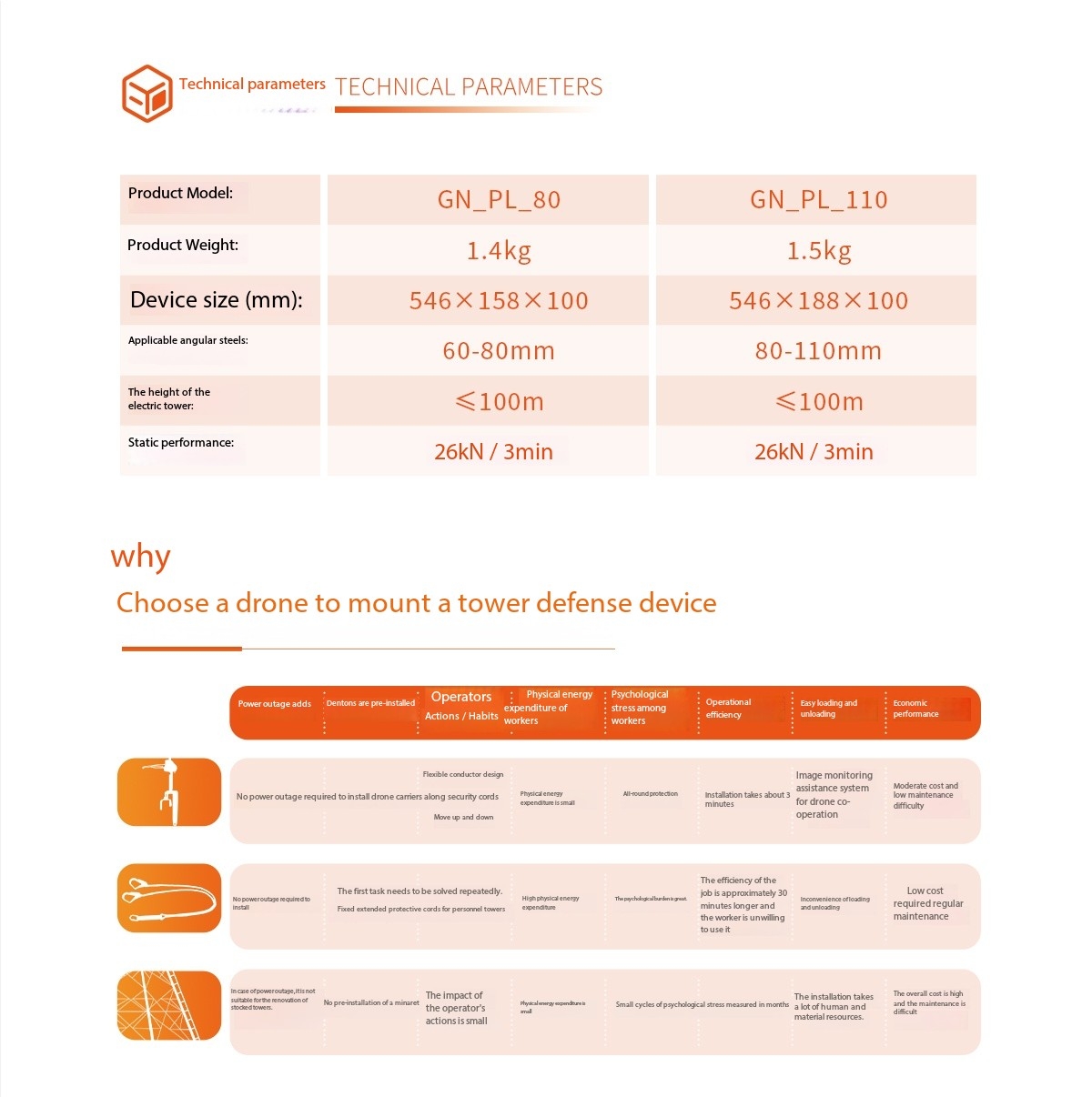

Technical Parameters

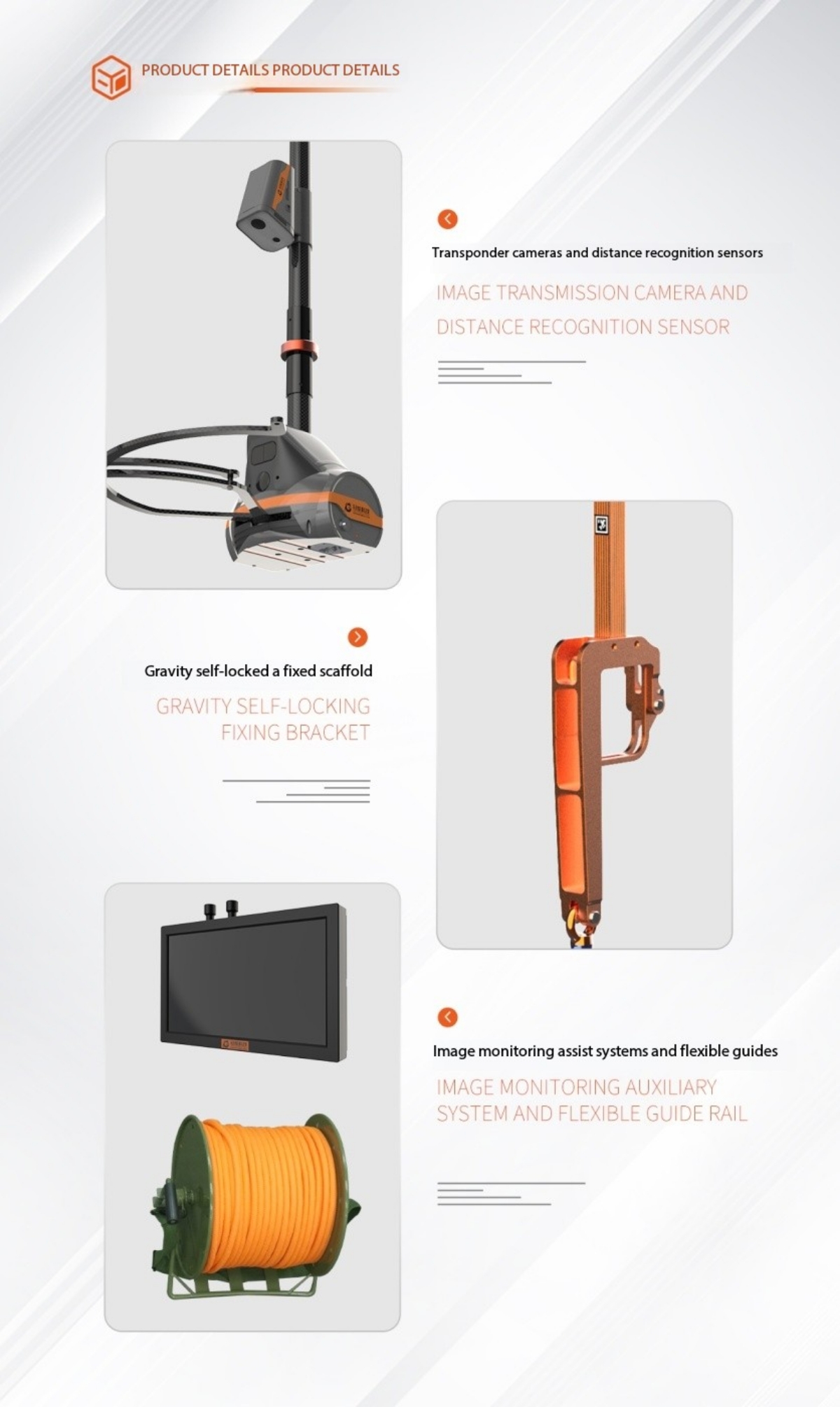

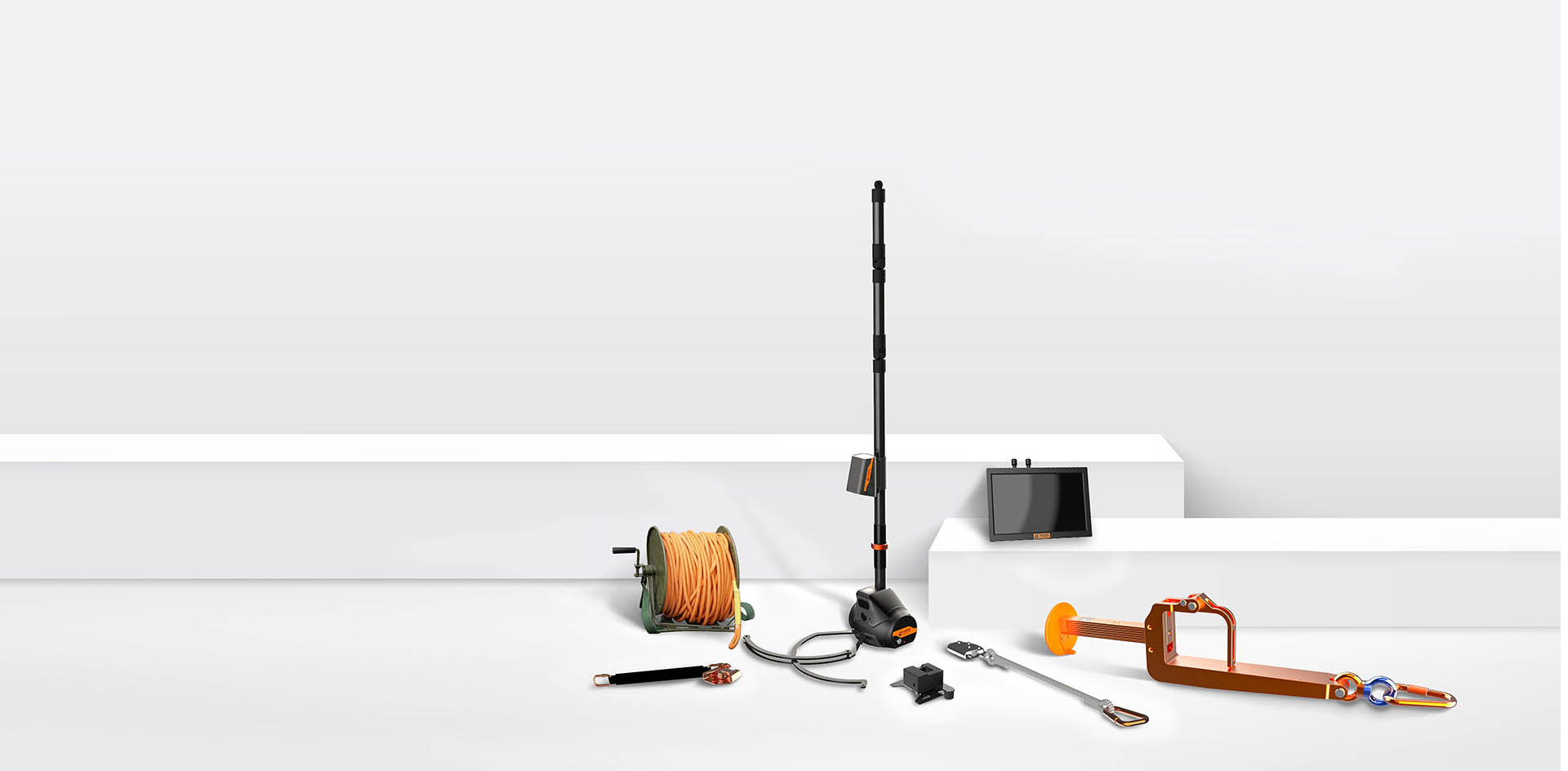

Component display
|
|
IMAGE CAMERA AND DISTANCE RECOGNITION SENSOR |
|

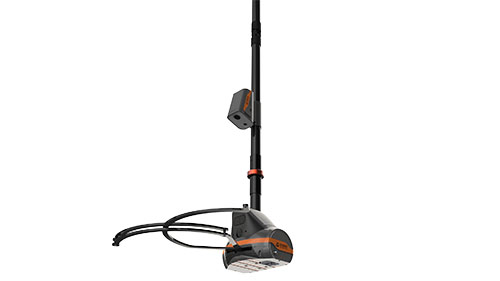

VISUALIZED MULTI-JOINT FLEXIBLE VEHICLE |
|
|
|
|

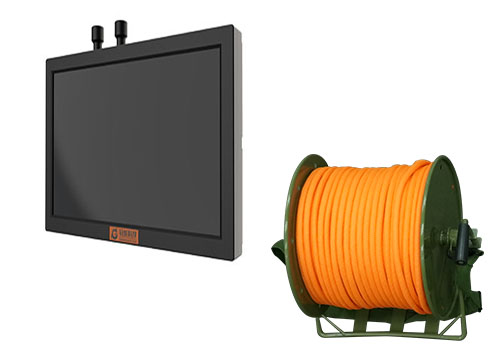

IMAGE DETECTION AUXILIARY SYSTEM AND FLEXIBLE GUIDE RAIL |
Core Functions

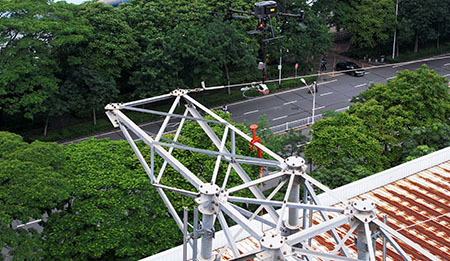

Enabling rapid installation and removal of the device via drones, effectively ensuring the safety of tower climbers.
·The device has the advantages of being lightweight overall and having high strength.
·The device has the advantages of being lightweight overall and having high strength.
·It effectively solves the challenge of fall prevention during the tower-climbing process and can be widely used for protecting personnel against falls in tower-climbing operations.

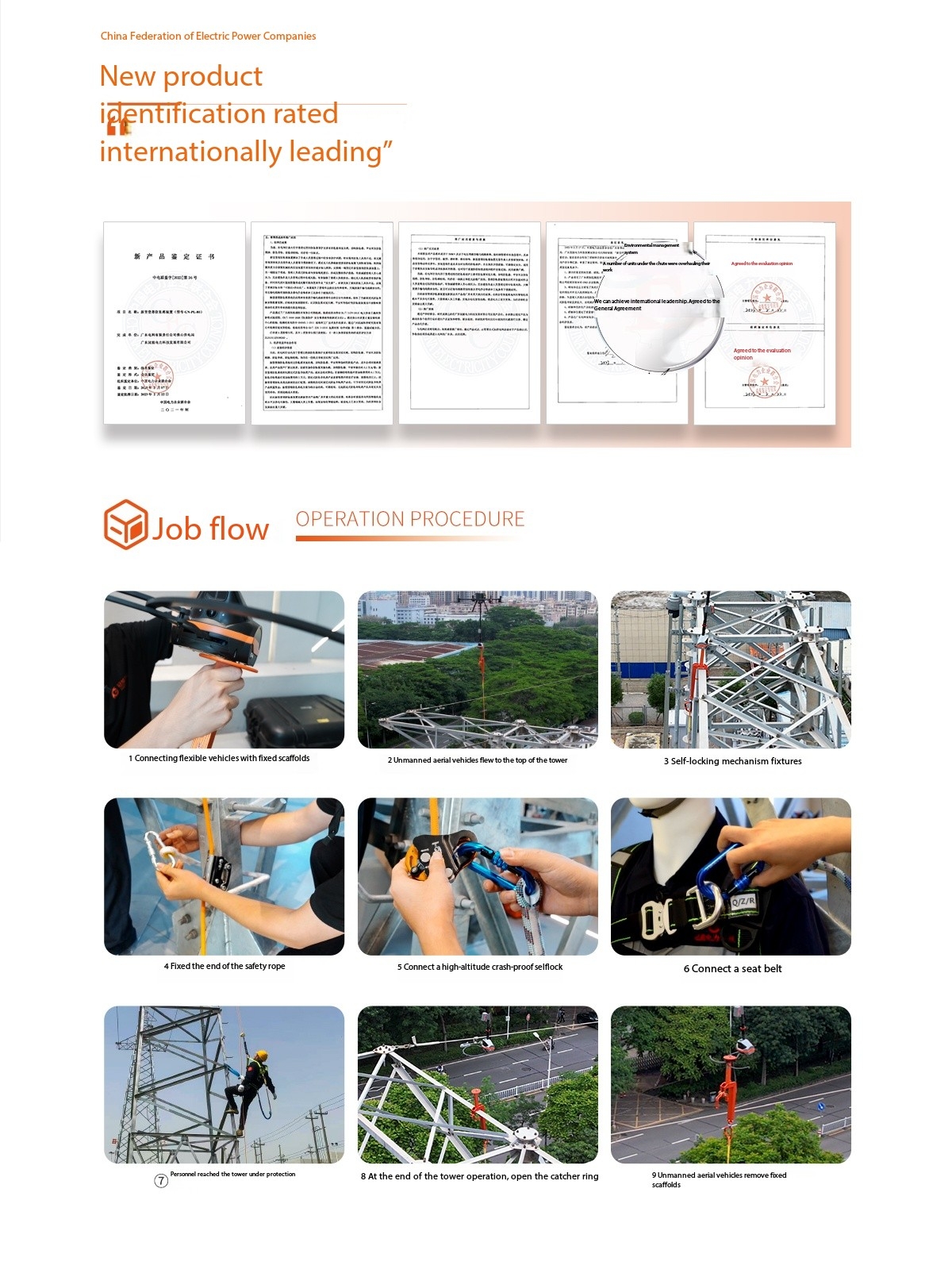

Operation Procedure

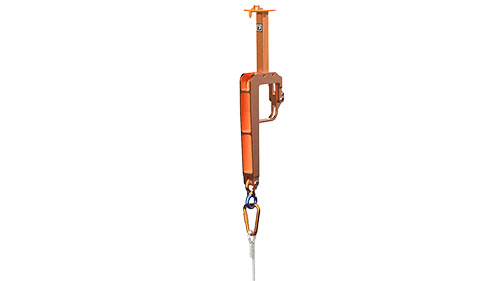

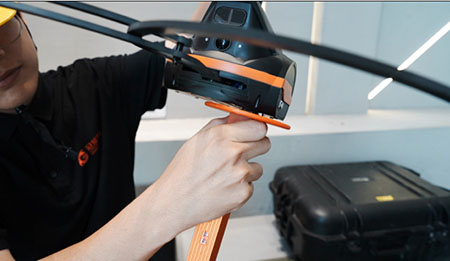

①Connect the flexible carrier to the fixed bracket
②Connect the flexible carrier to the fixed bracket

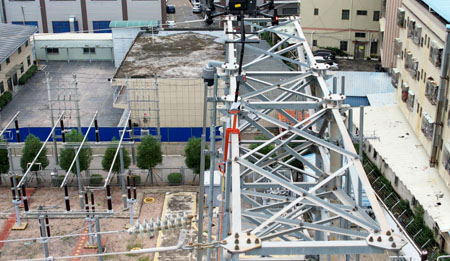

③The self-locking mechanism fixes the device.

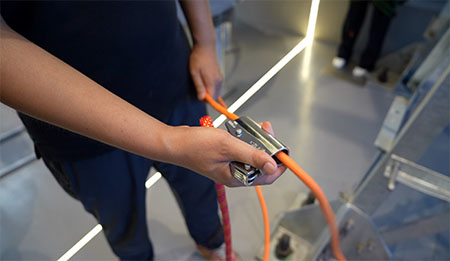

④Secure the end of the safety rope and connect it to the fall arrest self-locking device.
⑤After climbing work is done, open the gripper holding ring

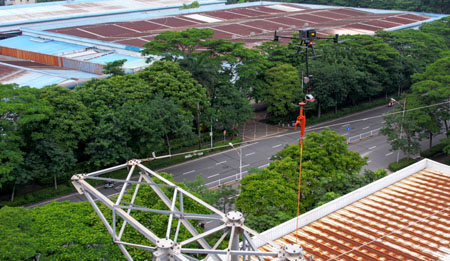

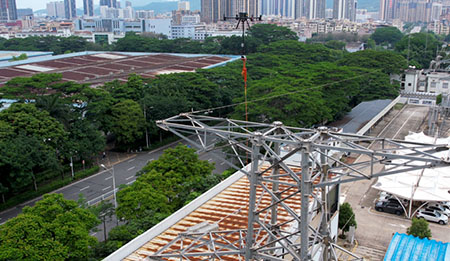

⑥ The drone removes the fixed bracket

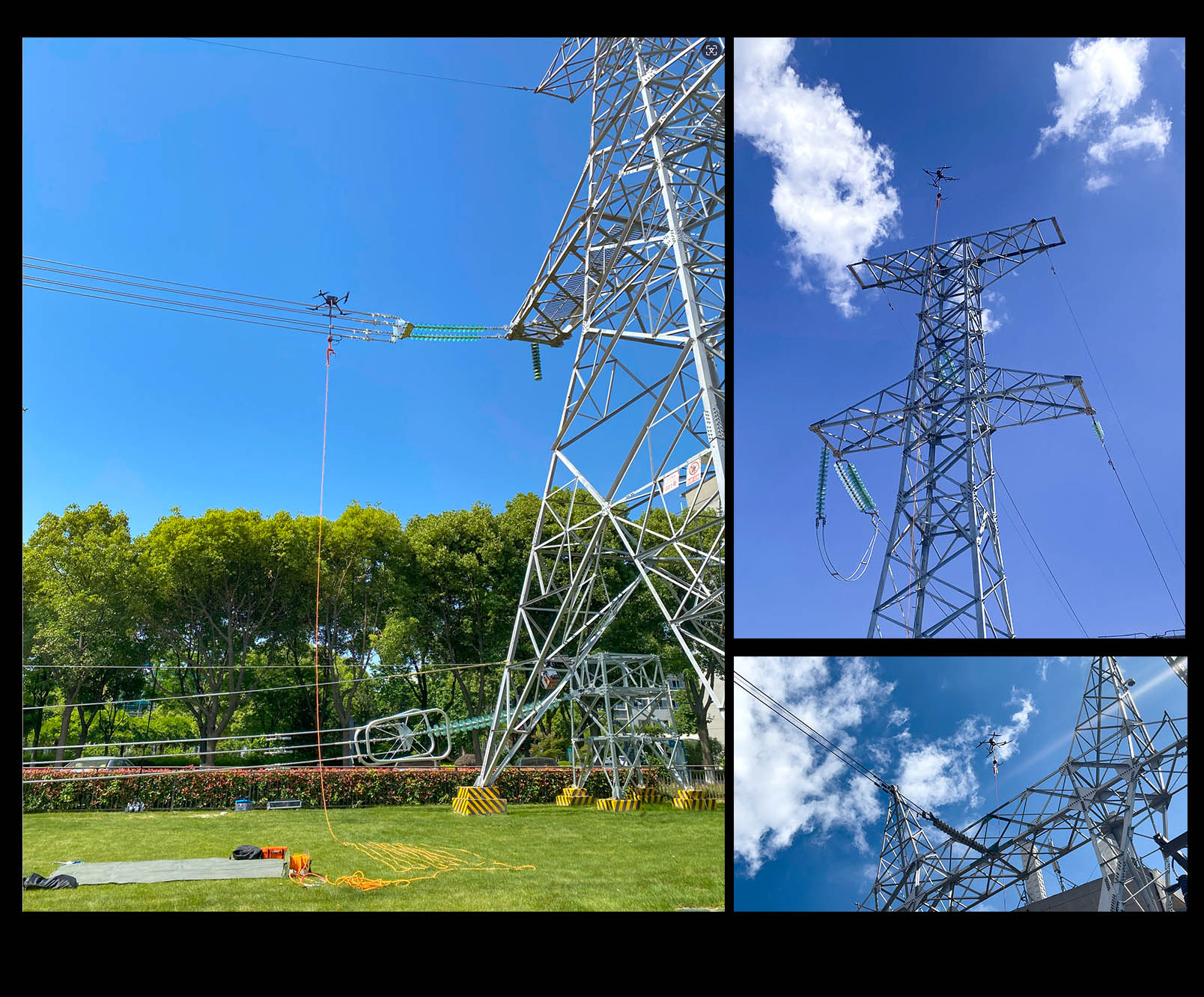

Service Site
