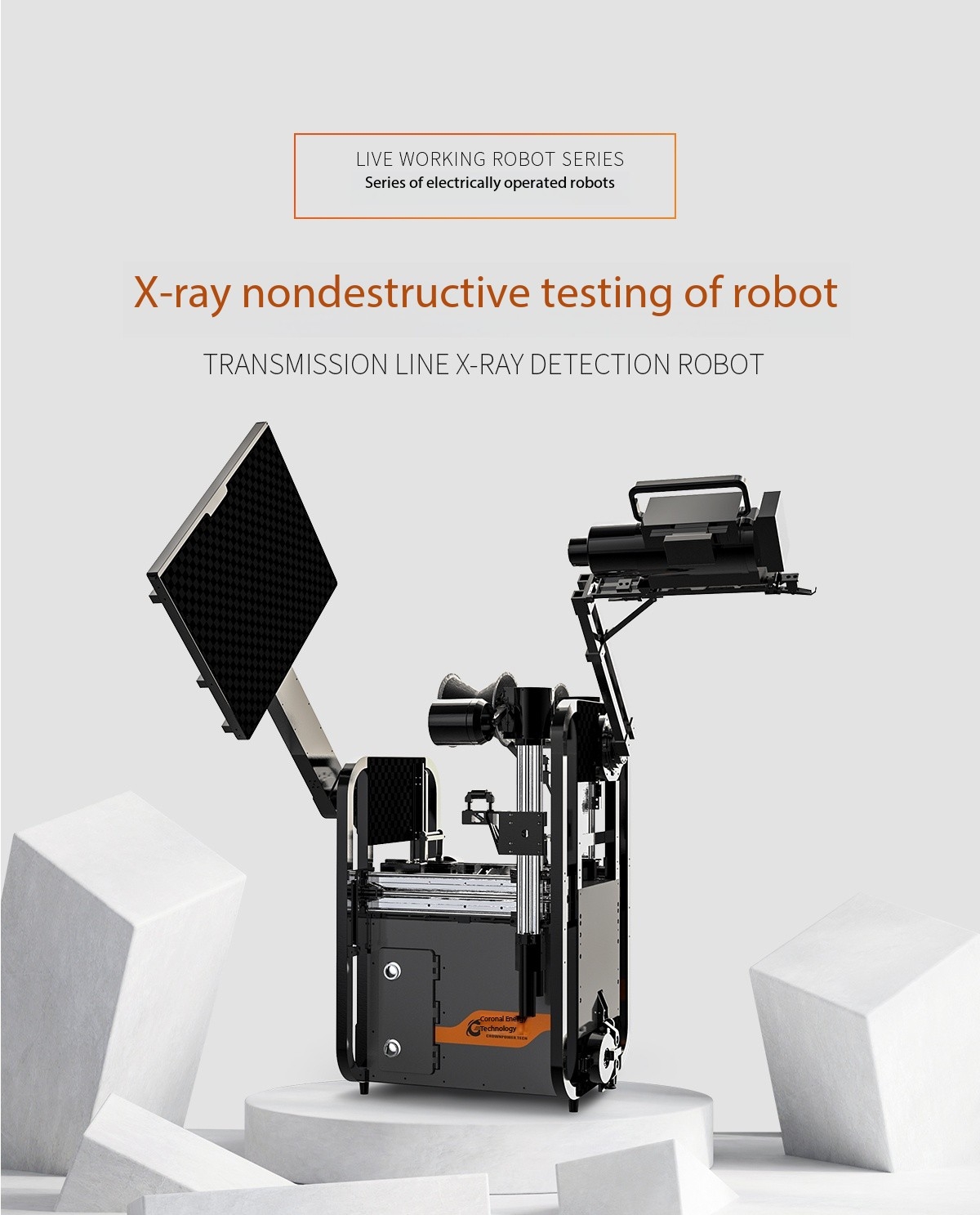

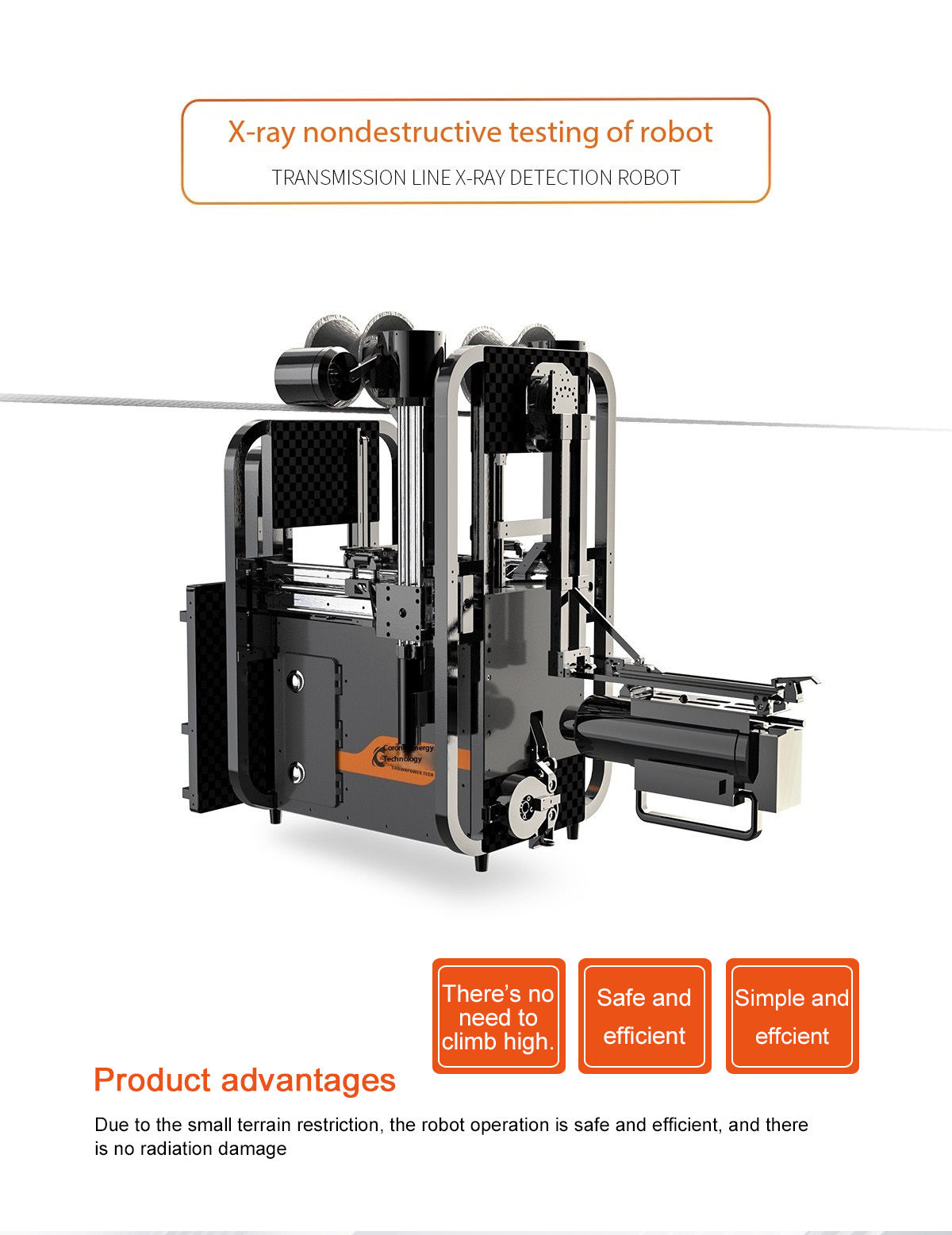

X-ray non-destructive testing robot

Transmission

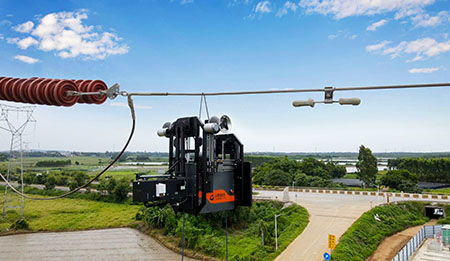

Line X-Ray Detection Robot

No Need for Climbing and No Radiation
Live Working
Intelligent and High-efficiency
Adhering to the Mechanized Construction Concept of the Power Grid

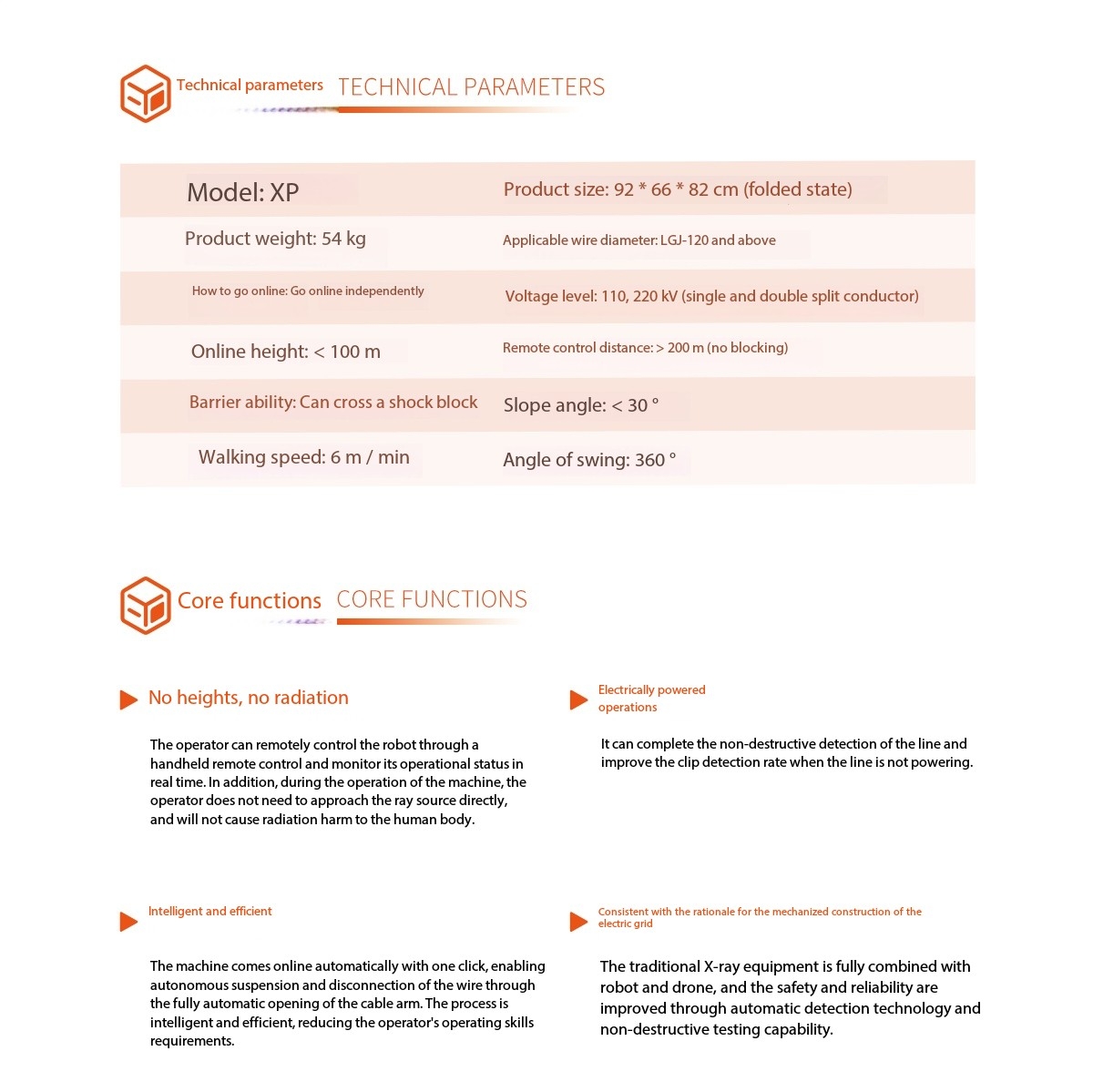

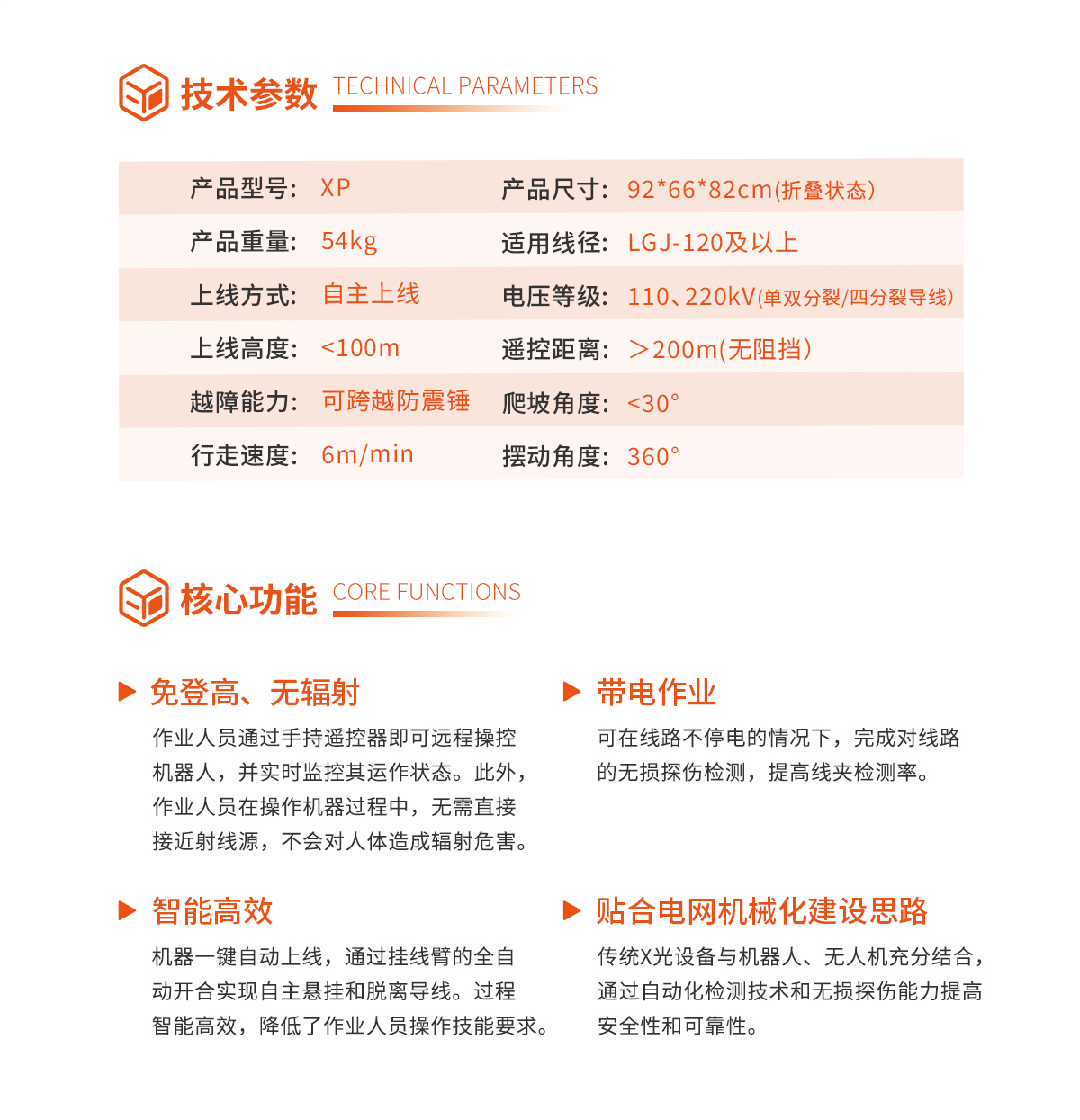

Technical Parameters

Product Model	XP	Product Dimensions	92cm×66cm×82cm (folded state)
Product Weight	54kg	Online Method	Self-online
Voltage Level	110, 220kV (single and double conductor bundles)	Applicable Wire Diameter	LGJ-120 or higher wire diameter (18mm)
Conductor height	<100m	Remote Control Distance	>200m (no obstruction)
Obstacle crossing capacity	Can cross torsional dampers	Climbing Angle	<30°
Walking Speed	6m/min	Swing angle	360°

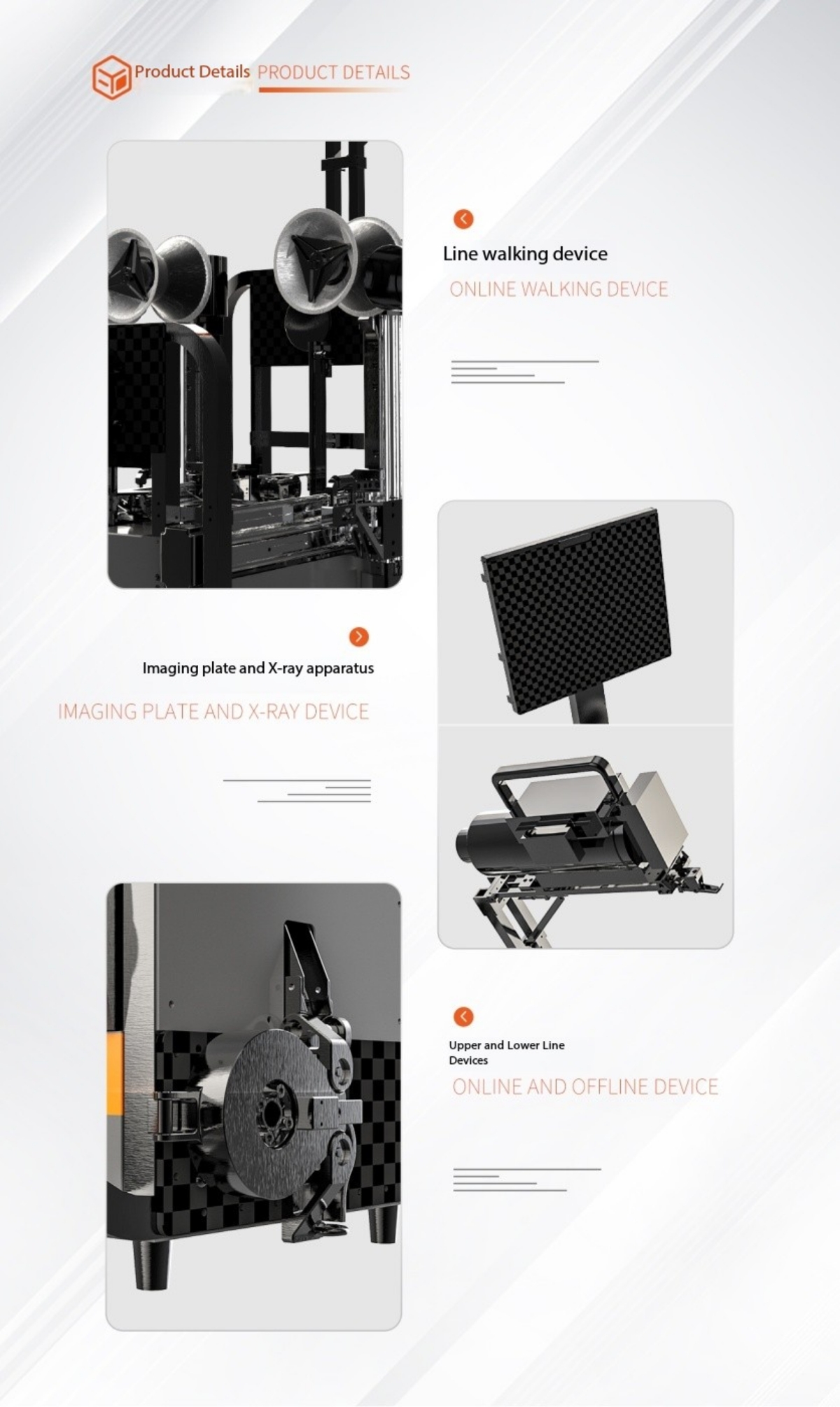

Component display

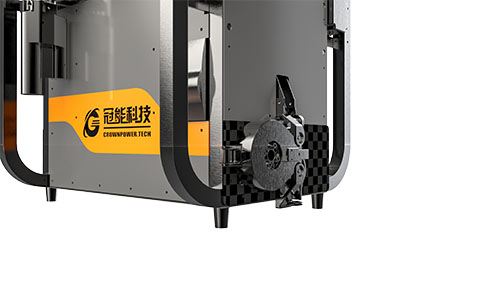

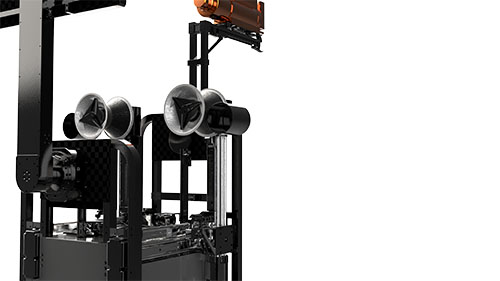

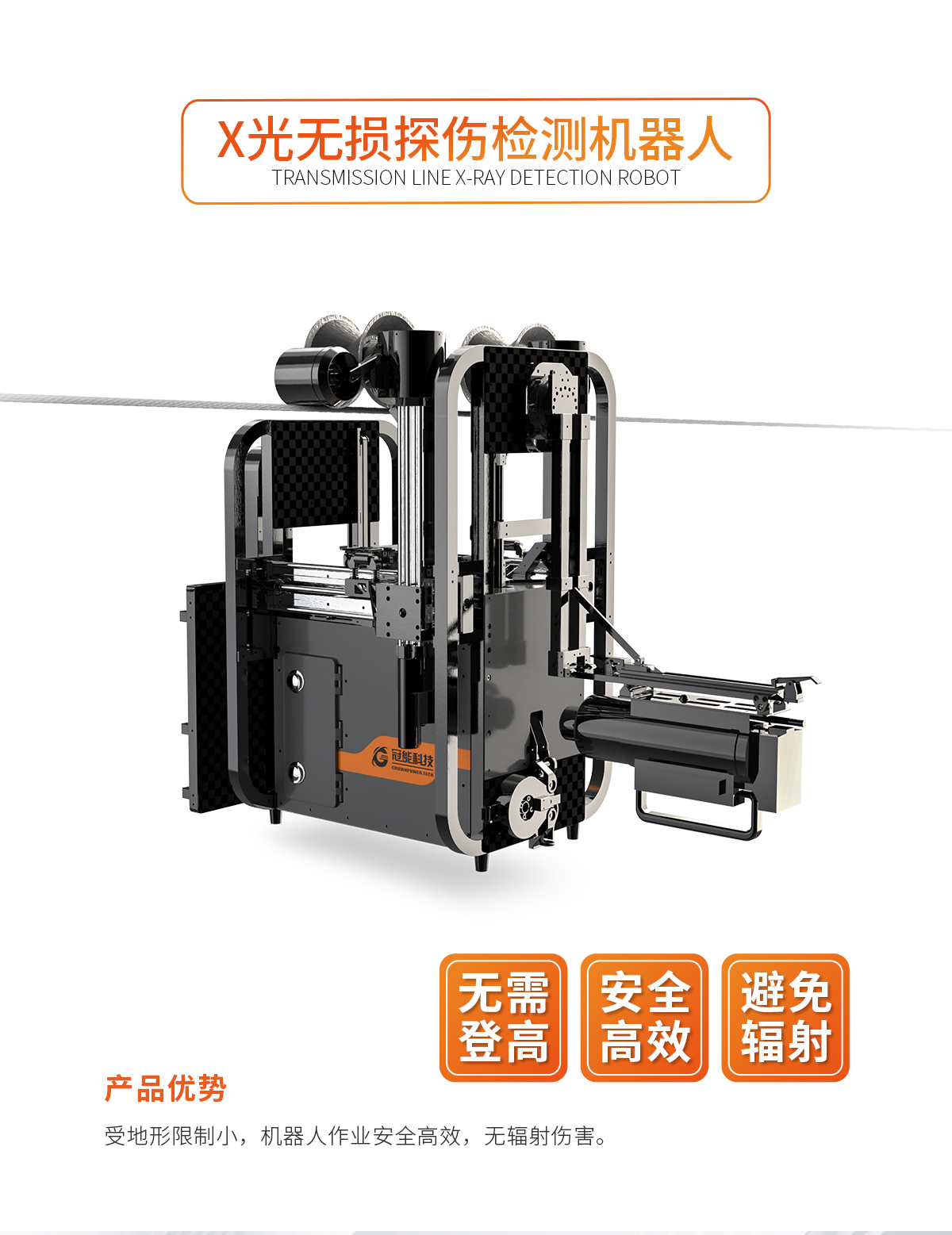

		ONLINE WALKING DEVICE

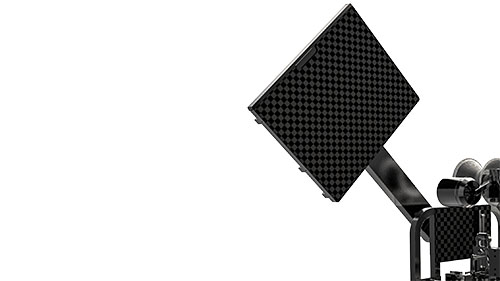

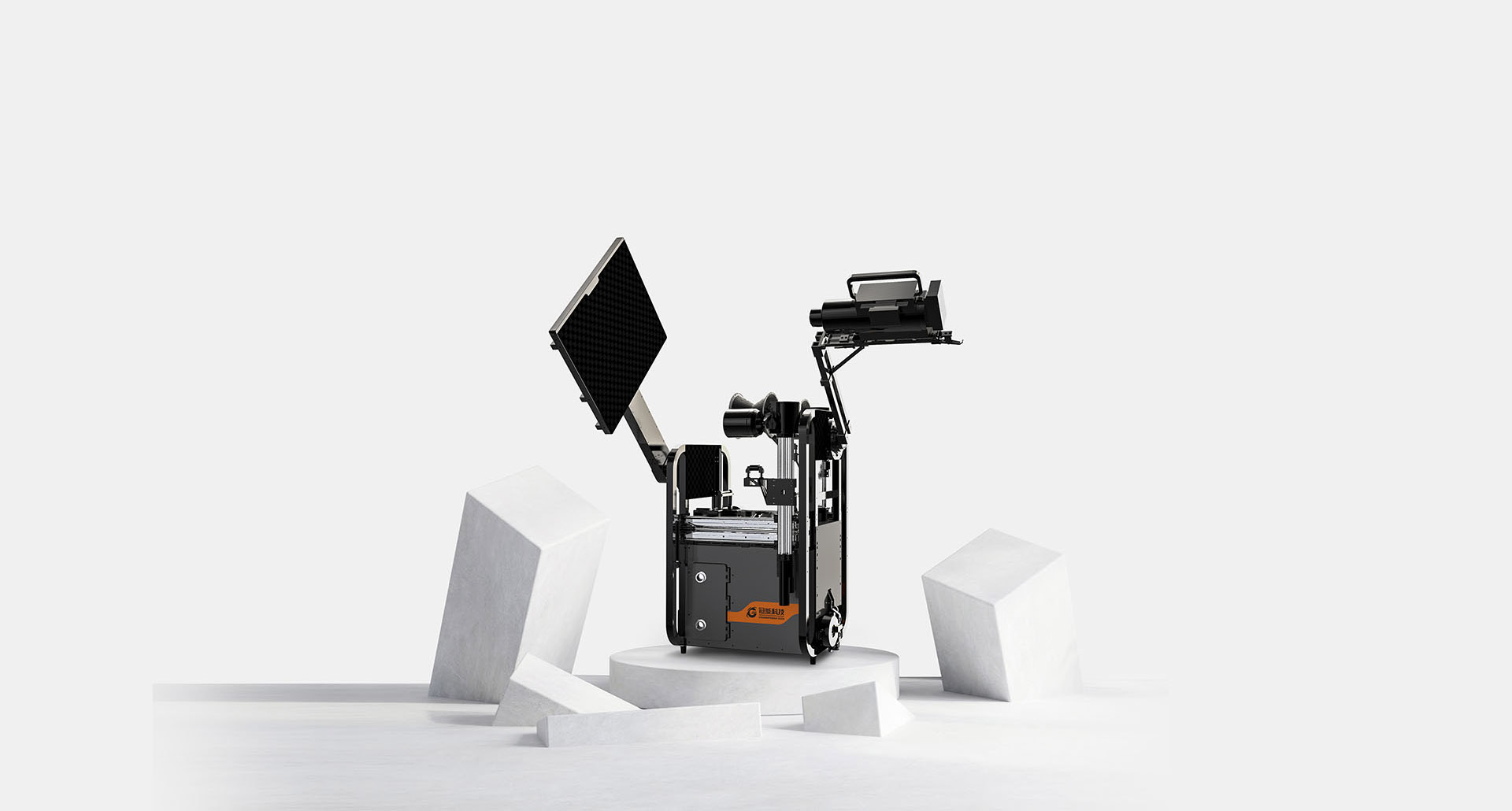

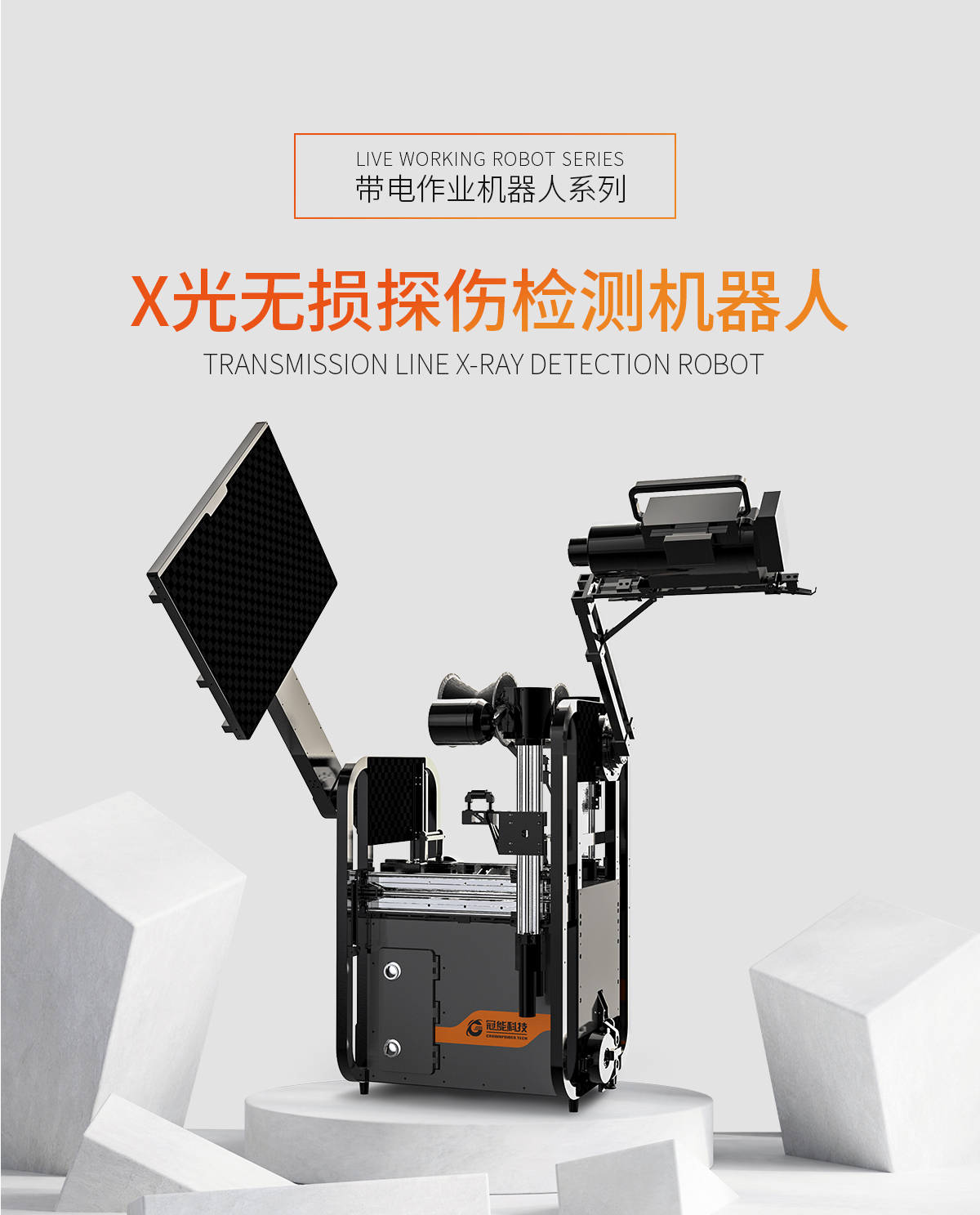

IMAGING PLATE AND X-RAY DEVICE
		IMAGING PLATE AND X-RAY DEVICE

Core Functions

No Need for Climbing and No Radiation

Operators can remotely control the robot using a handheld remote controller and monitor its operating status in real time. Additionally, during operation, personnel do not need to approach the radiation source directly, thus avoiding any radiation hazards to the human body.

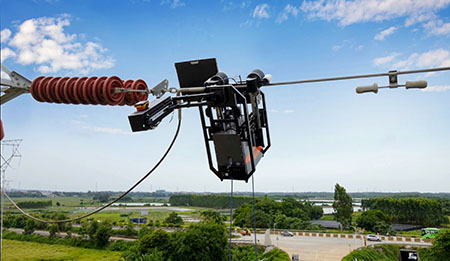

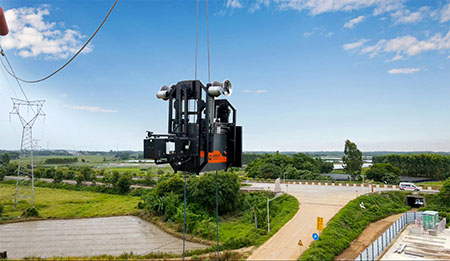

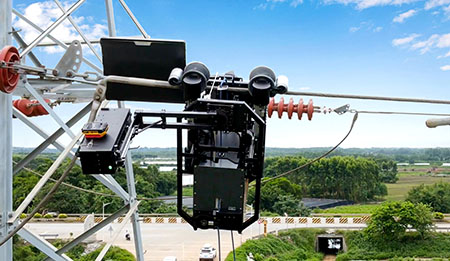

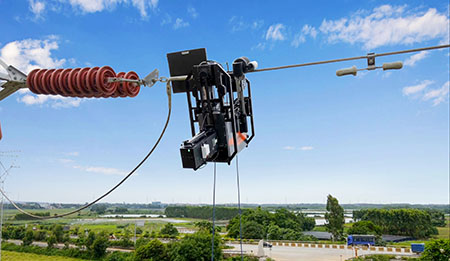

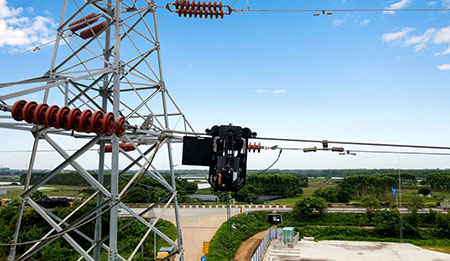

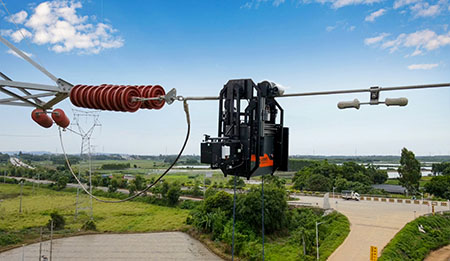

Live Working

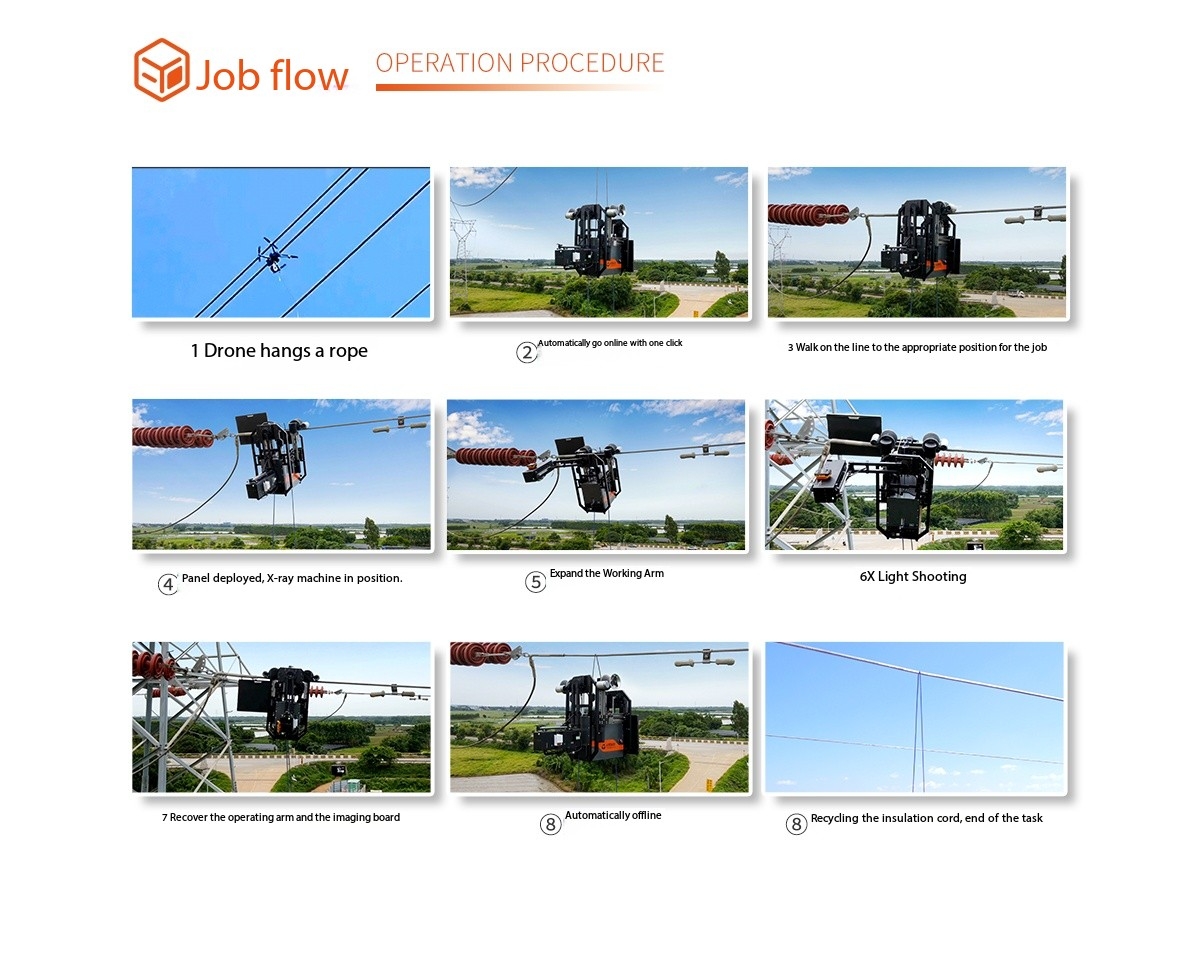

The robot automatically launches onto the line with one button press, achieving autonomous attachment to and detachment from the conductor through fully automatic opening and closing of the hanging arm. The process is intelligent and efficient, reducing the operational skill requirements for personnel.

Intelligent and High-efficiency

It enables non-destructive flaw detection on power lines without requiring a power outage, improving the inspection rate of line clamps.

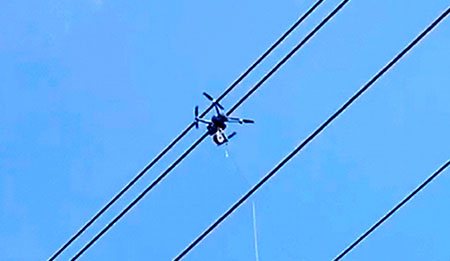

Adhering to the Mechanized Construction Concept of the Power Grid

Traditional X-ray equipment is fully integrated with robots and drones, enhancing safety and reliability through automated inspection technology and non-destructive testing capabilities.
