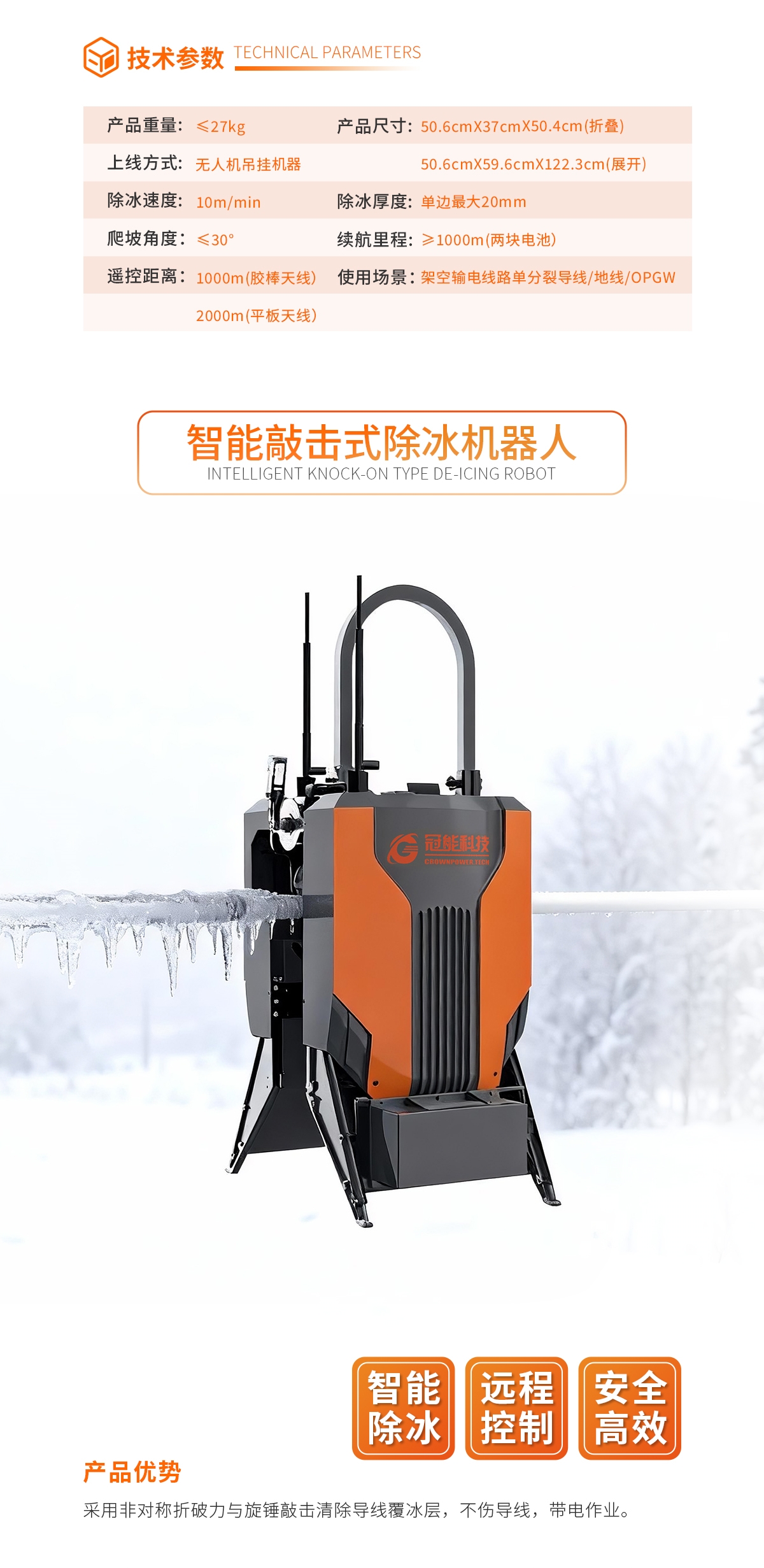

| Product Weight | <27kg | Product Dimensions | 50.6cmX37cmX50.4cm(Fold） 50.6cmX59.6cmX122.3cm(Unfold） |
|---|---|---|---|
| Online Method | Drone-mounted machinery | De-icing thickness | Maximum 20mm on one side |
| De-icing speed | 10m/min | Range endurance | Over 1000m (with two batteries) |
| Climbing Angle | ≤30° | Remote control distance | 1000m (rubber antenna) 2000m (flat panel antenna) |
| Voltage Level | ≤110kV |

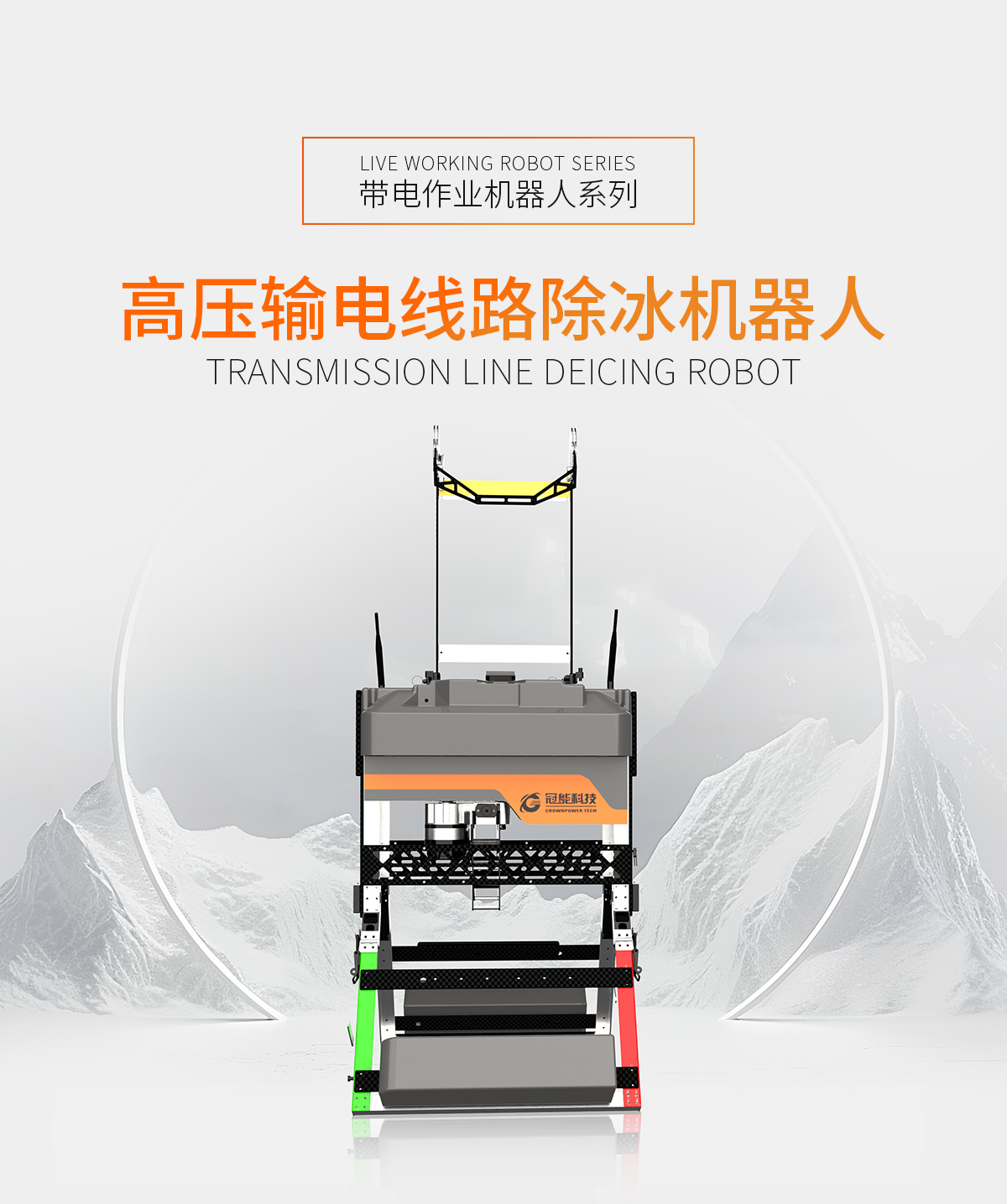

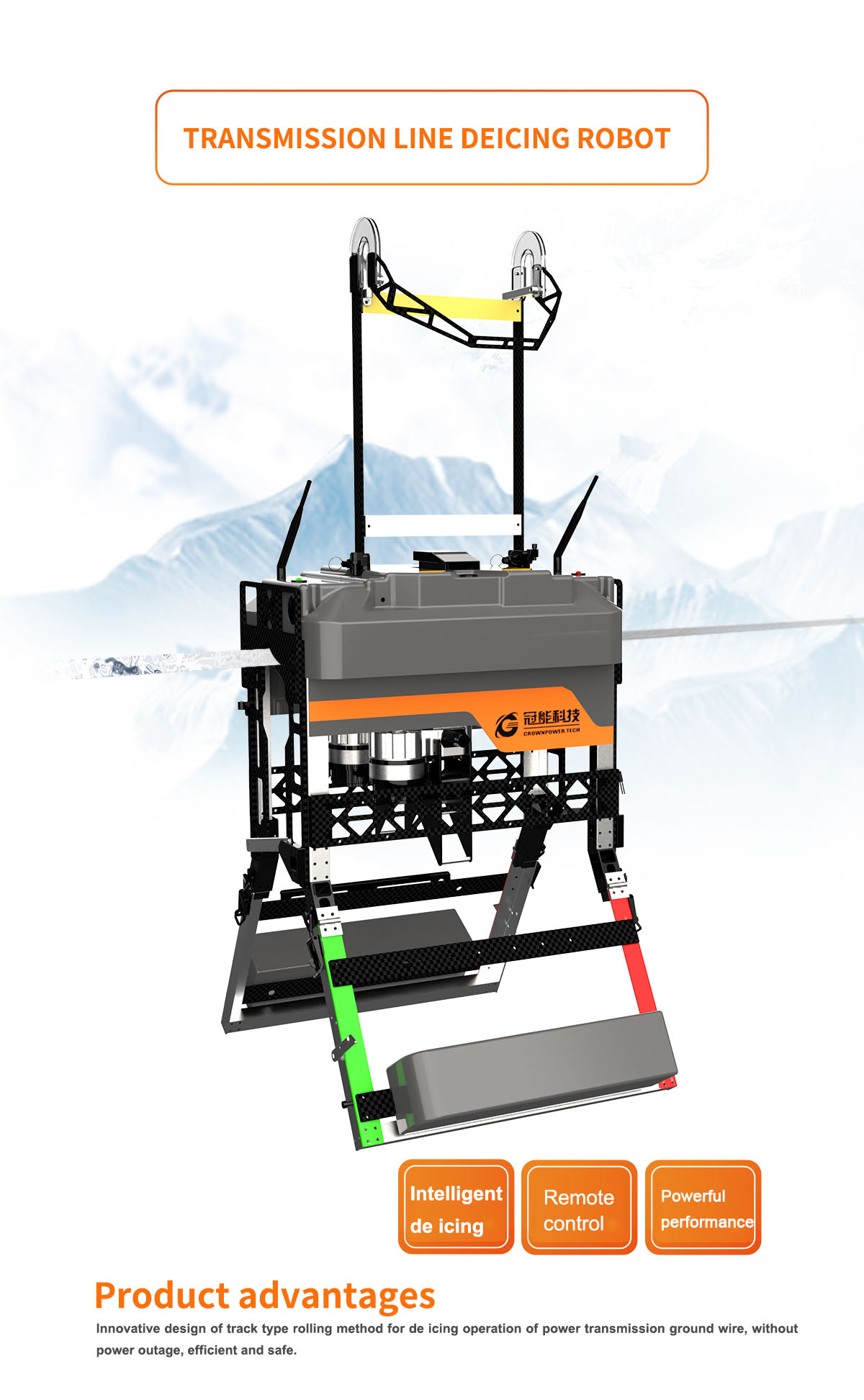

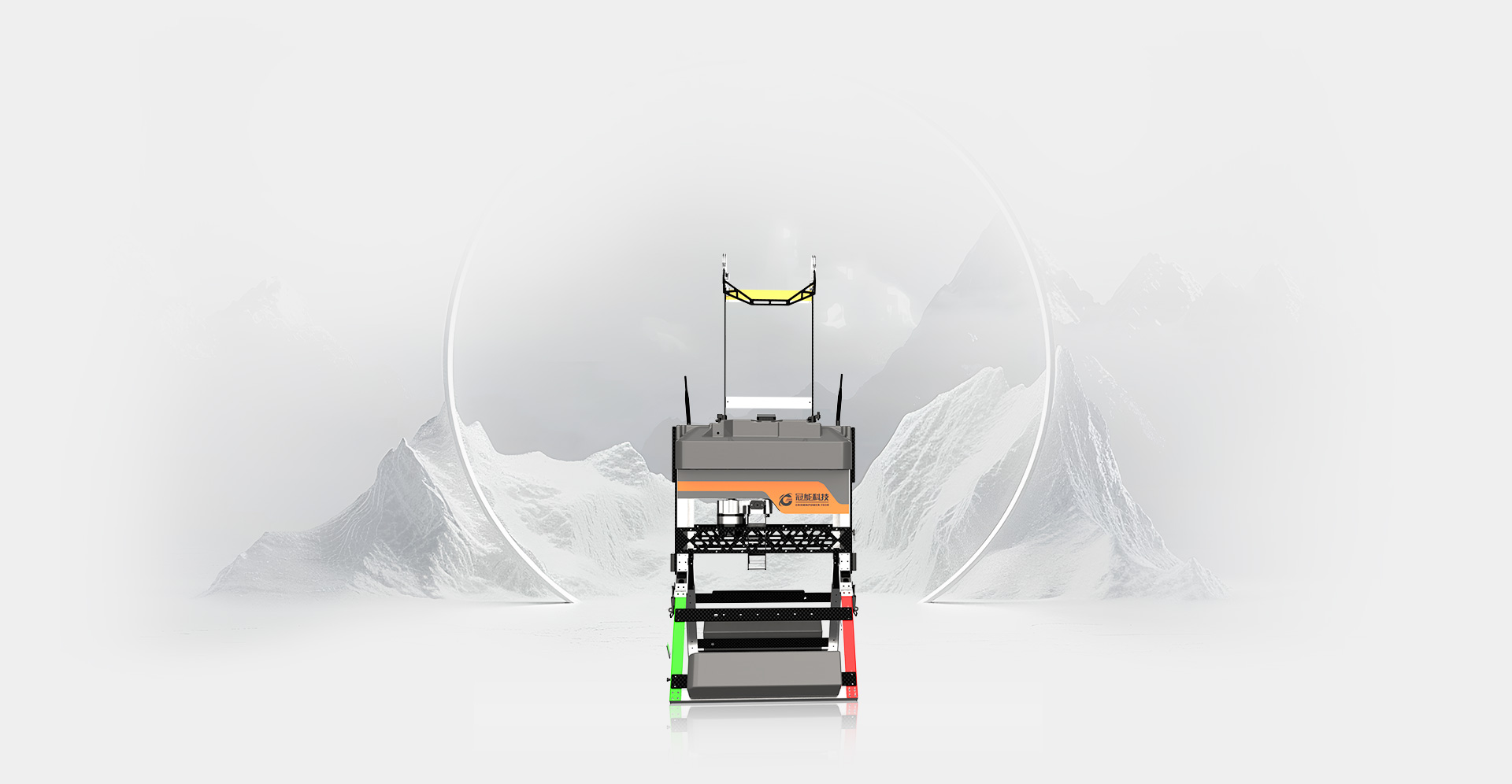

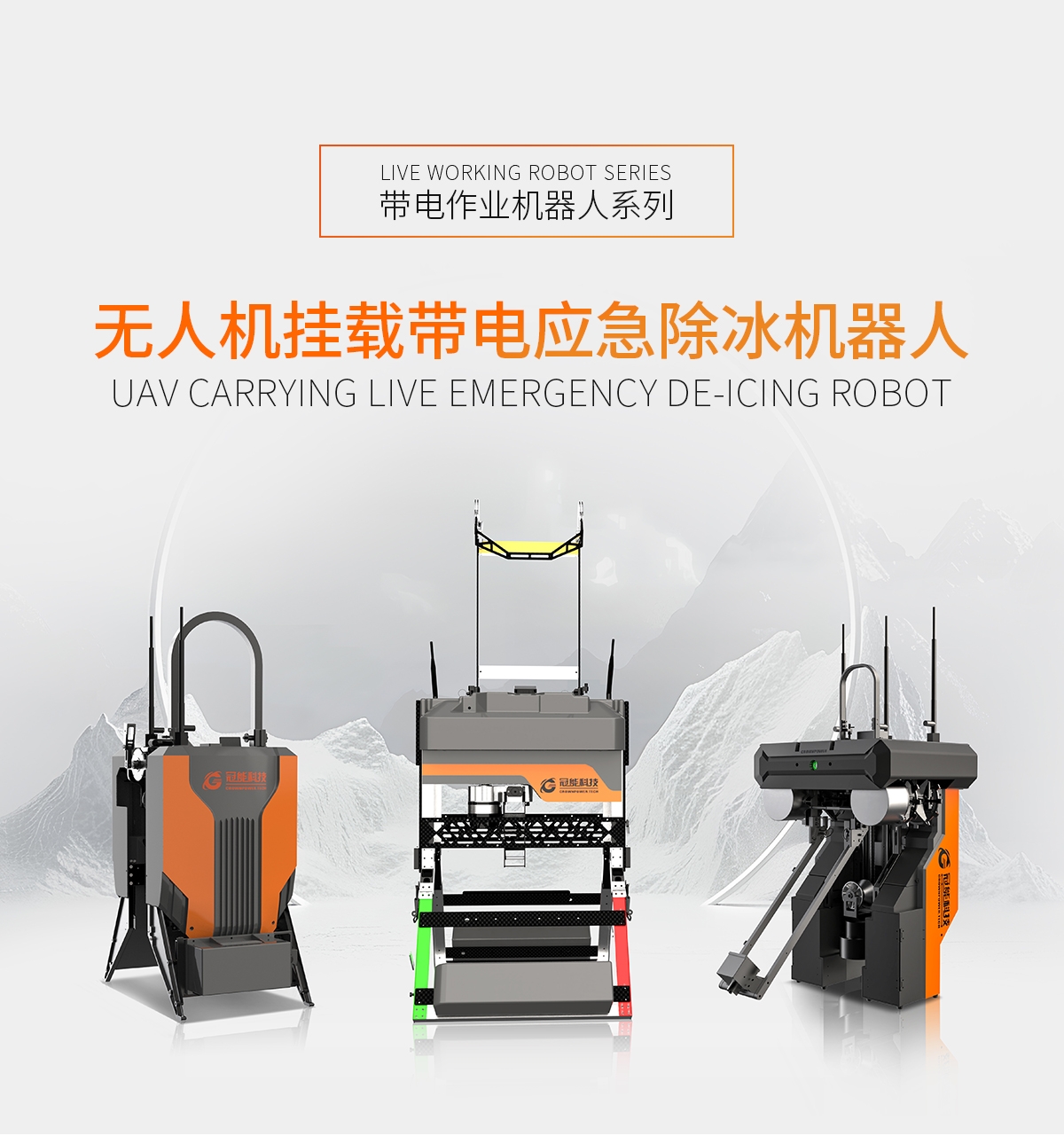

TRANSMISSION LINEDEICING ROBOT
- SELF-DEVELOPED DEICING TECHNOLOGY
- INTELLIGENT CONTROL
- SAFE AND STABLE
- POWERFUL PERFORMANCE

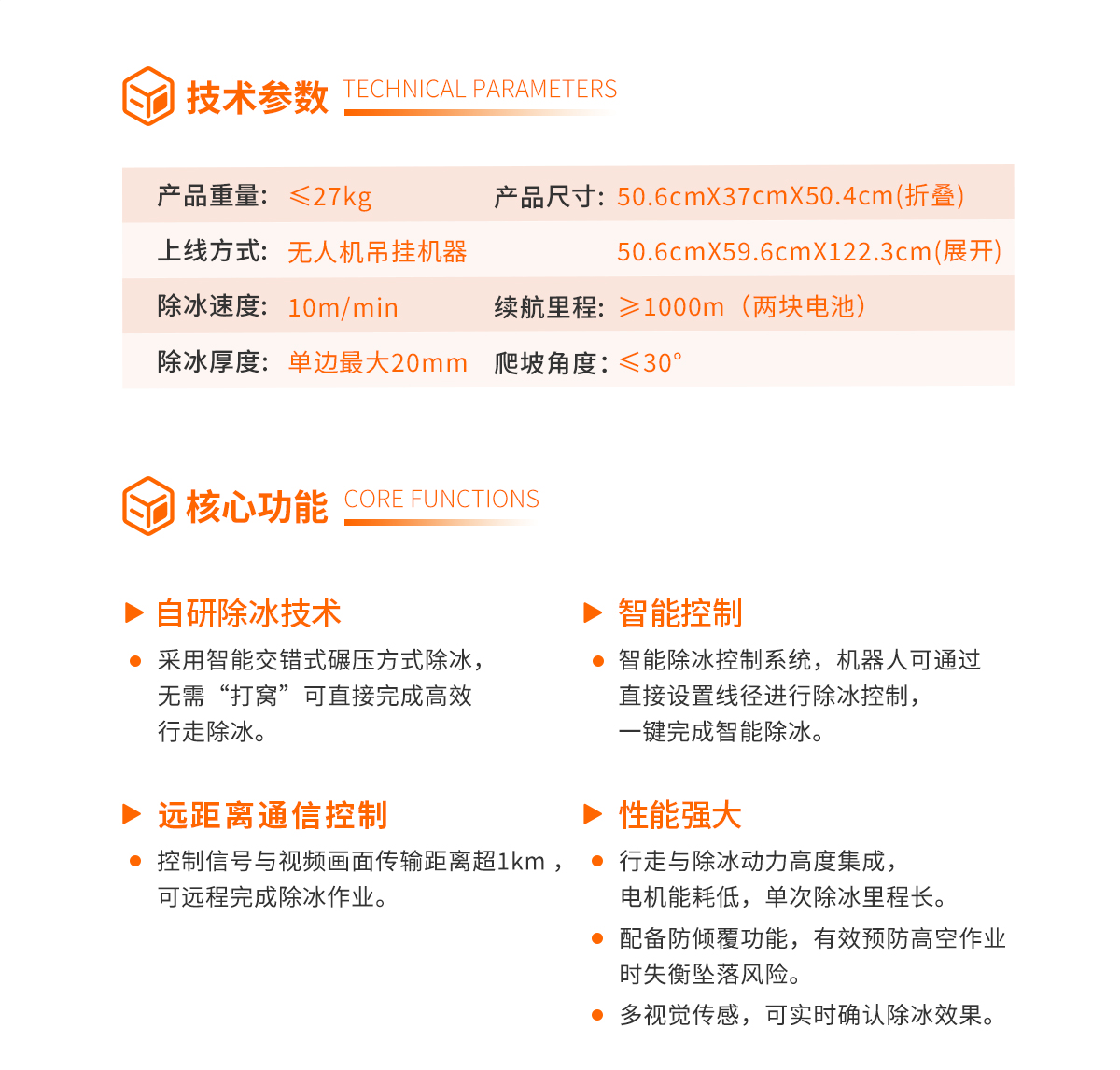

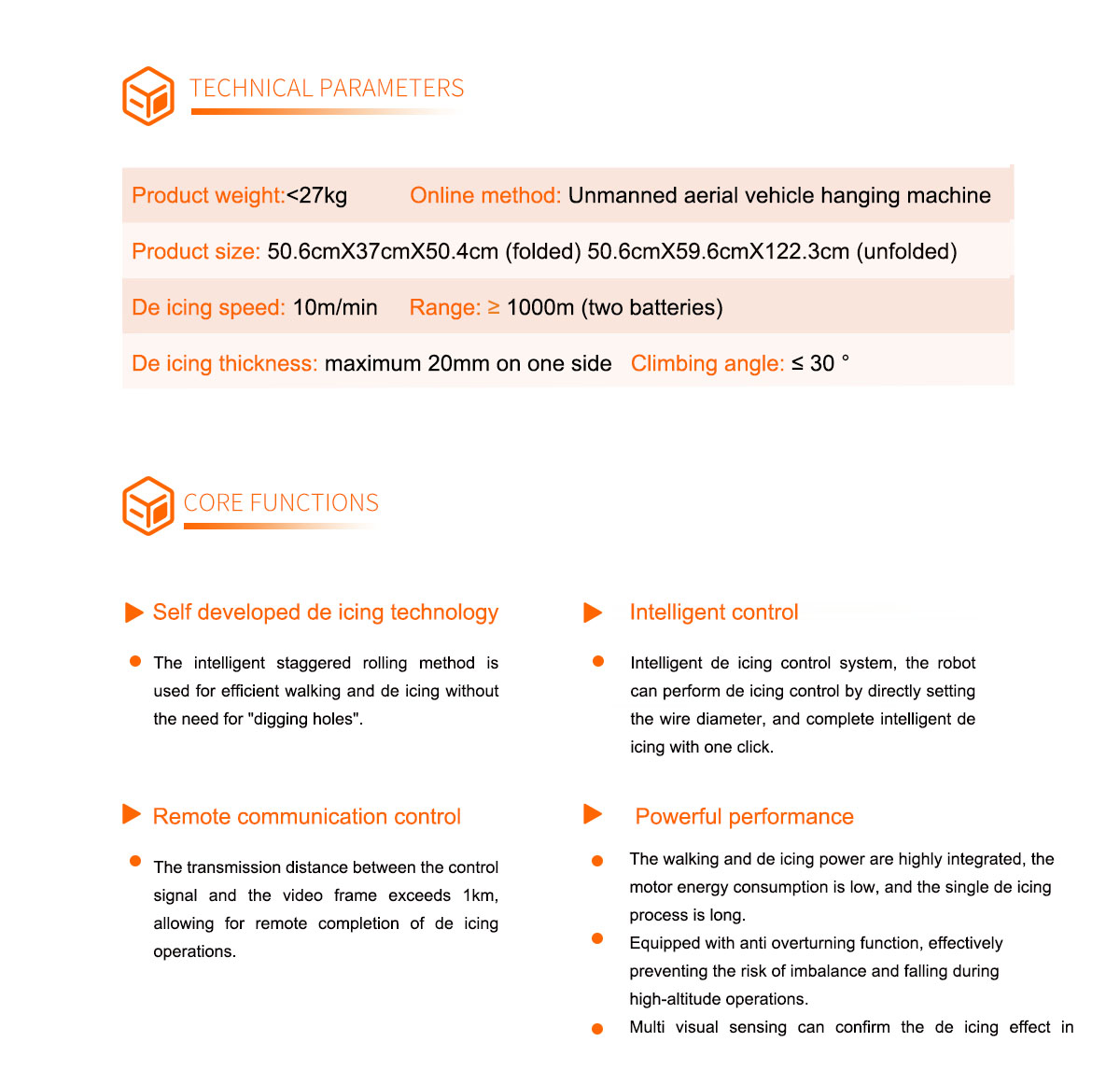

Technical Parameters

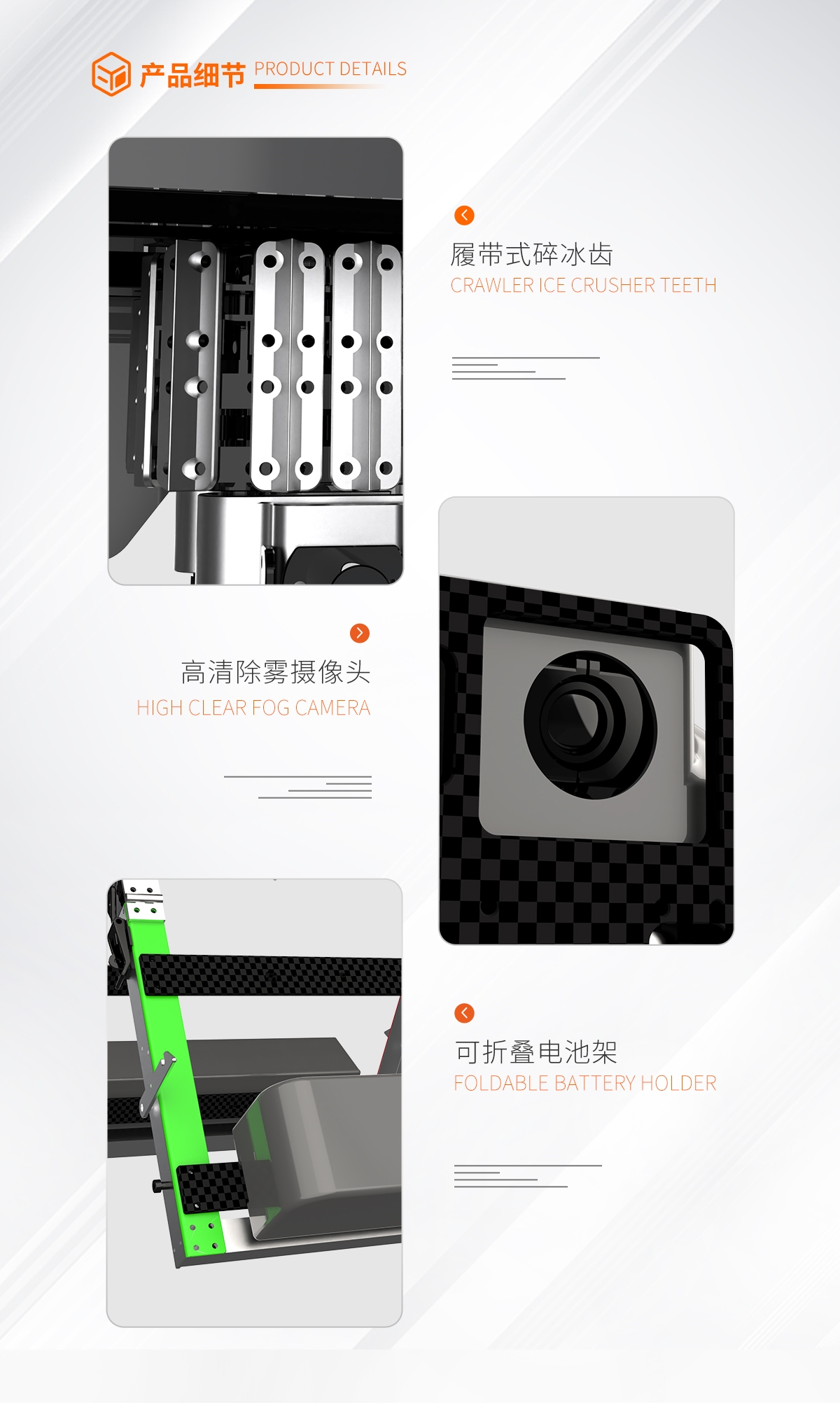

Component display
|

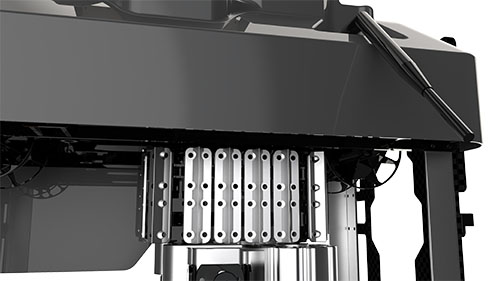

CRAWLER ICE CRUSHER TEETH |
|
|

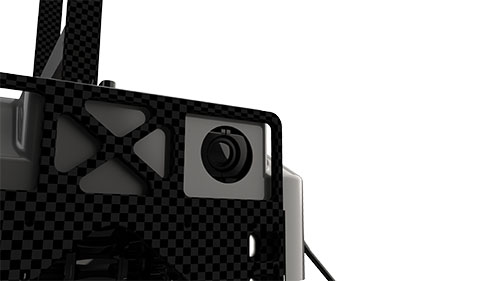

HIGH CLEAR FOG CAMERA |
|
|
|

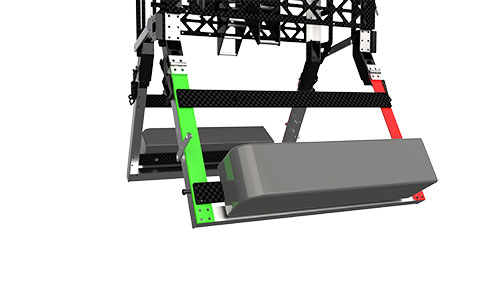

FOLDABLE BATTERY HOLDER |
Core Functions
SELF-DEVELOPED DEICING TECHNOLOGY
Adopting intelligent staggered rolling method for de-icing, it can directlyachieve efficient walking de-icing without the need for "making nests".
INTELLIGENT CONTROL
Intelligent de-icing control system, the robot can perform de-icingcontrol by directly setting the wire diameter, and complete intelligentde-icing with one click.
SAFE AND STABLE
Intelligent de-icing control system, the robot can perform de-icingcontrol by directly setting the wire diameter, and complete intelligentde-icing with one click.
Powerful performance
The power for walking and ice removal is highly integrated, with low motorenergyconsumption and a long single-charge ice removal distance. Equipped with anti-overturning function to effectively prevent the risk ofimbalance and falling during aerial work. Multi-vision sensing, which can confirm the de-icing effect in real time.

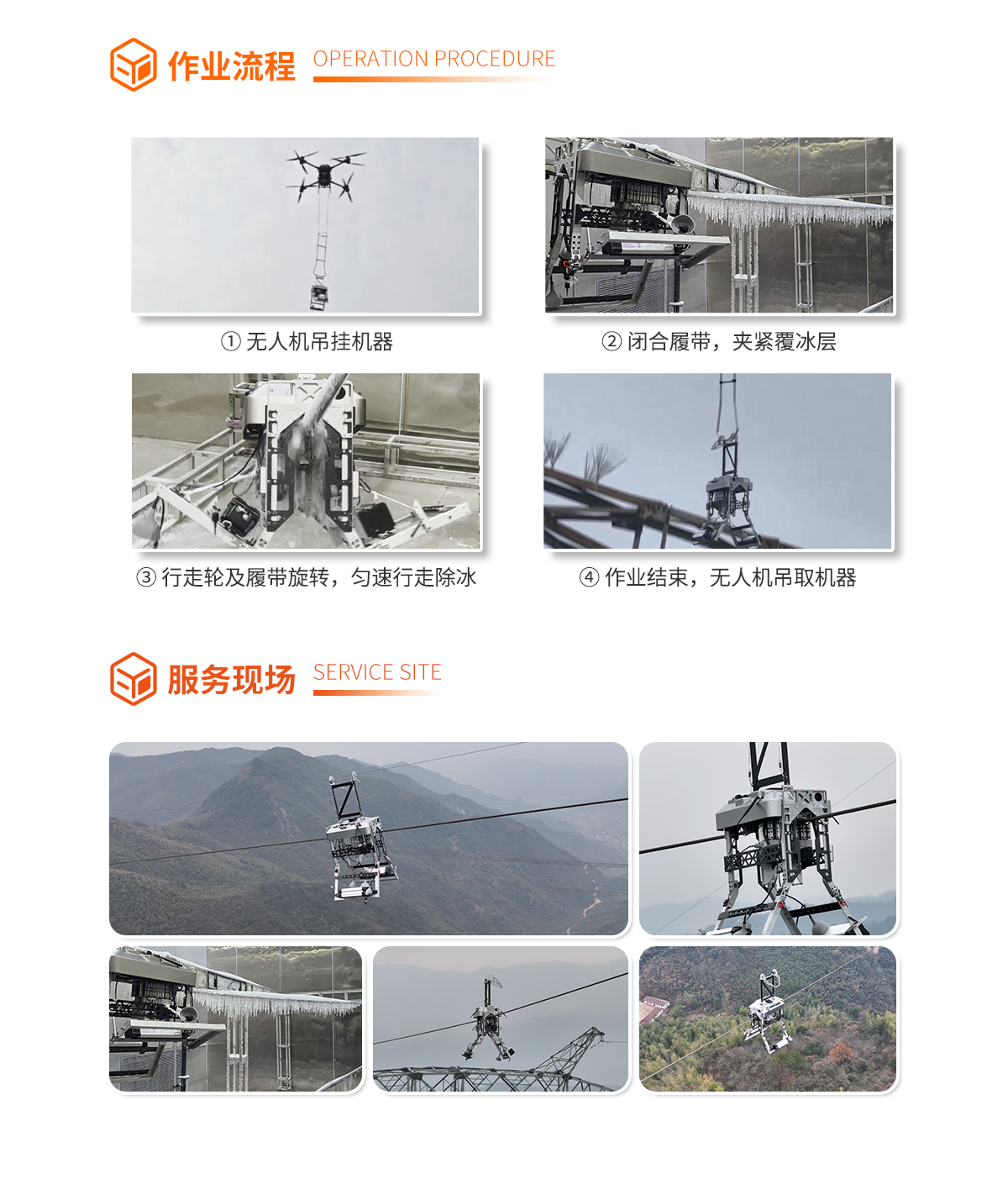

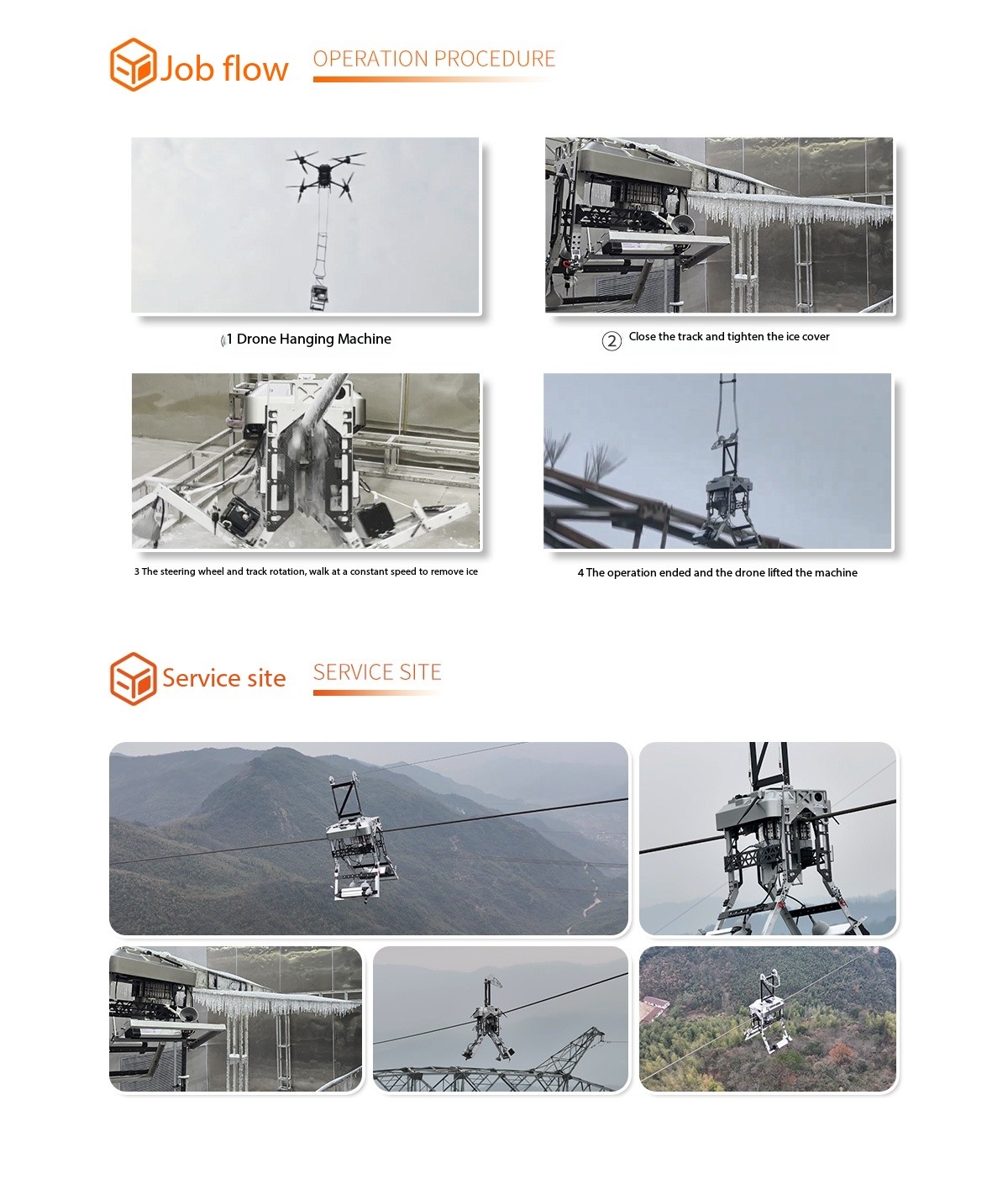

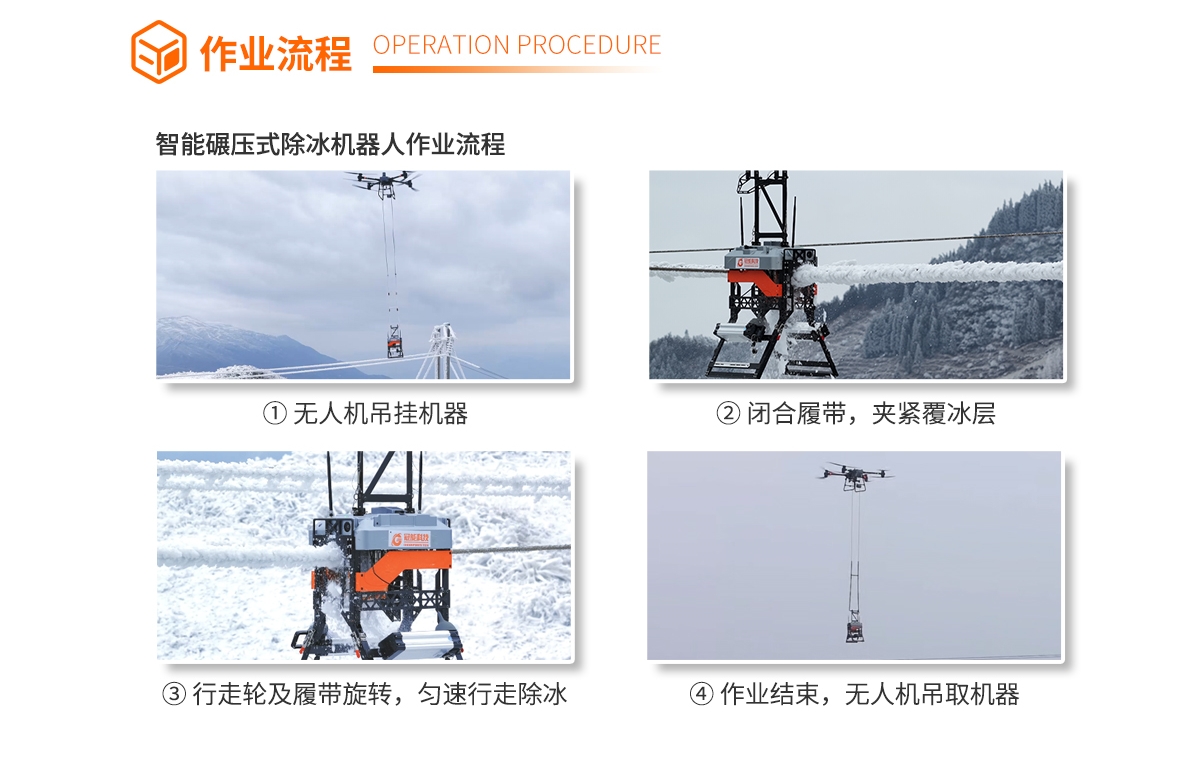

Operation Procedure

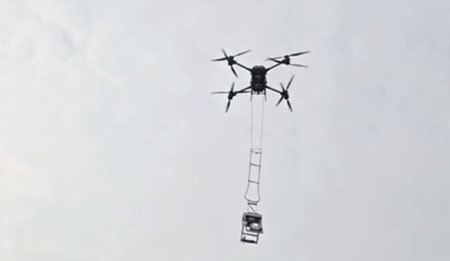

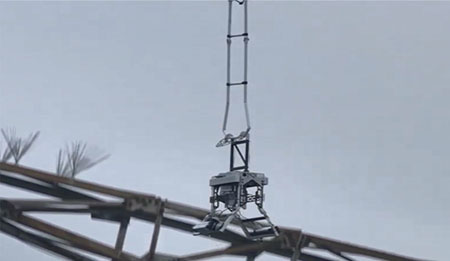

①Using a drone to carry and attach to the wire

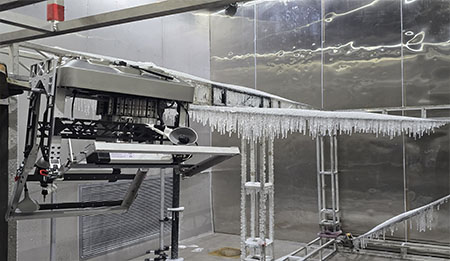

②Close the track and clamp the ice layer.

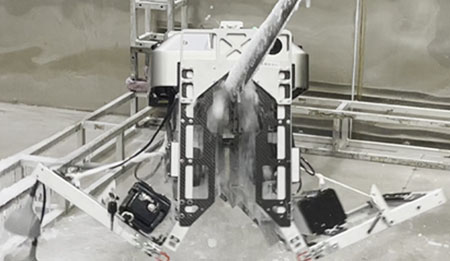

③The walking wheels and tracks rotate,moving at a constant speed to remove ice.
④The walking wheels and tracks rotate,moving at a constant speed to remove ice.

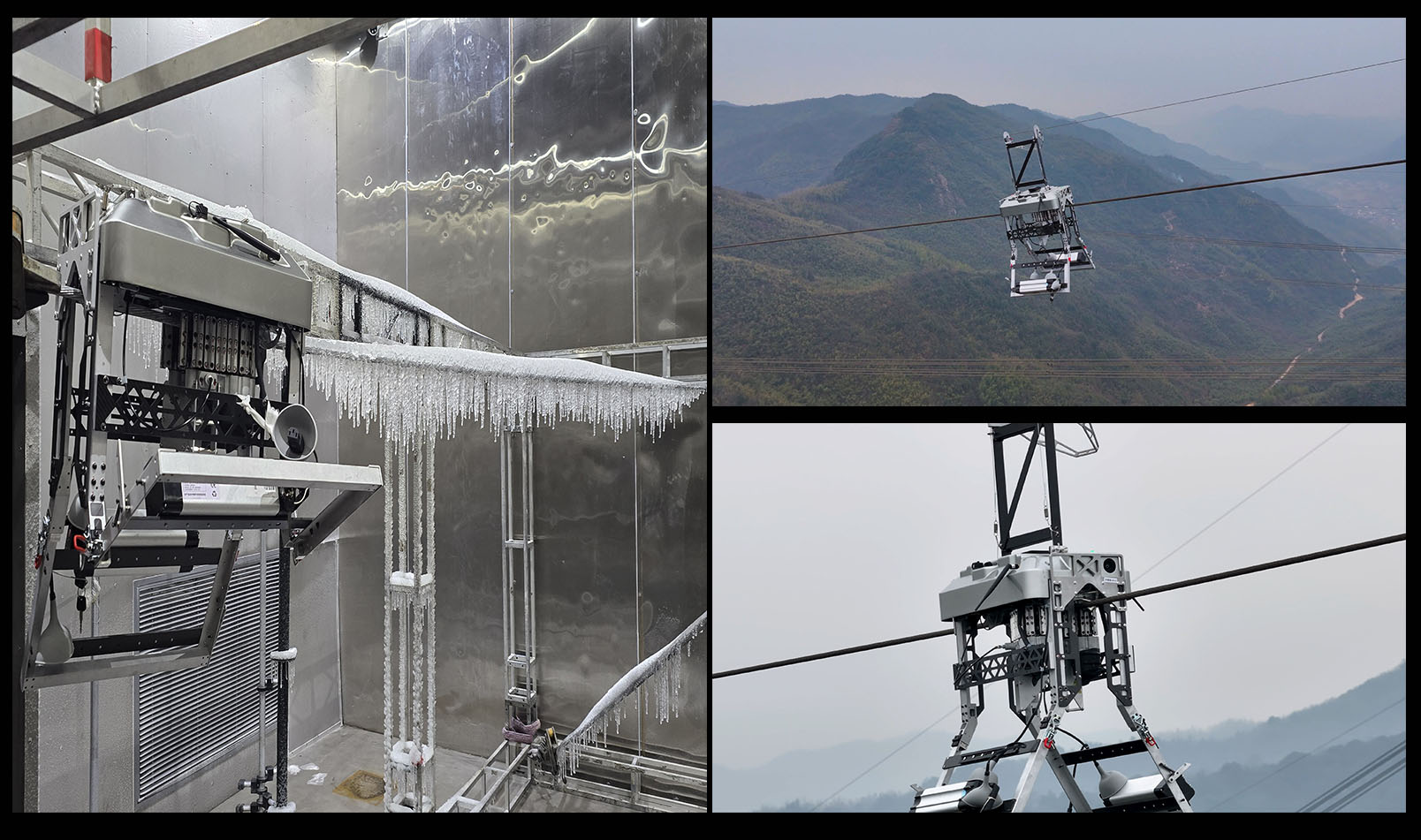

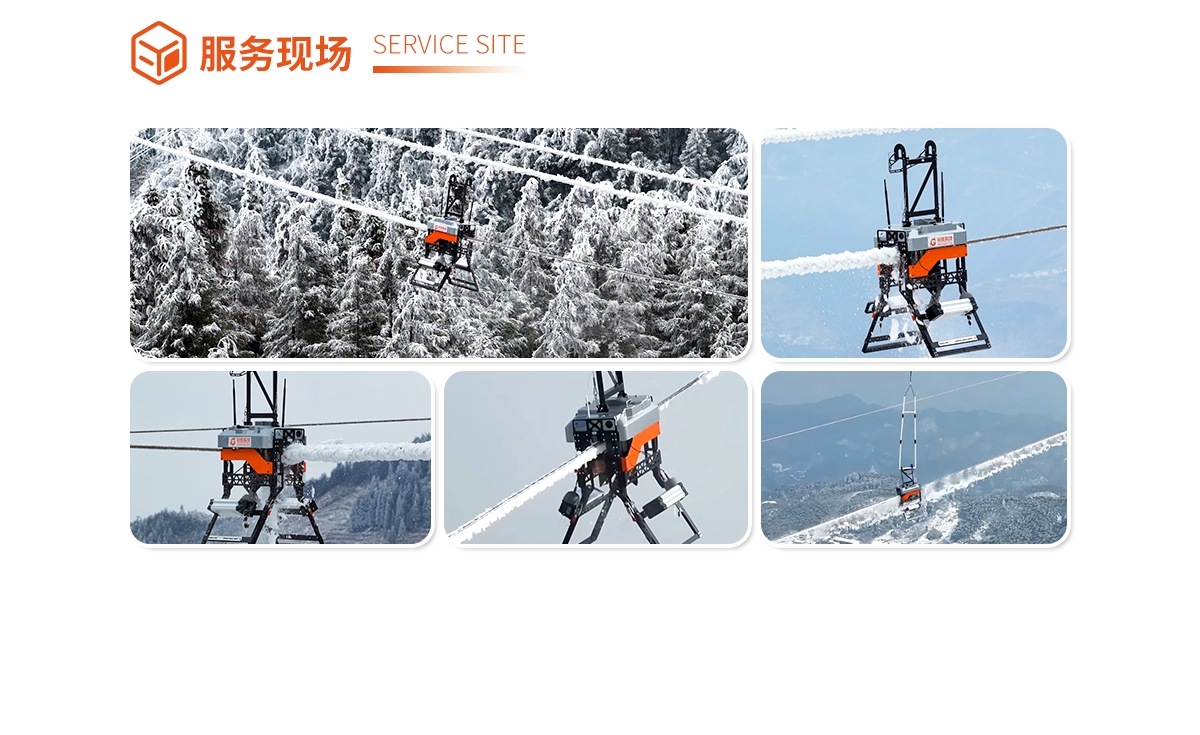

Service Site
